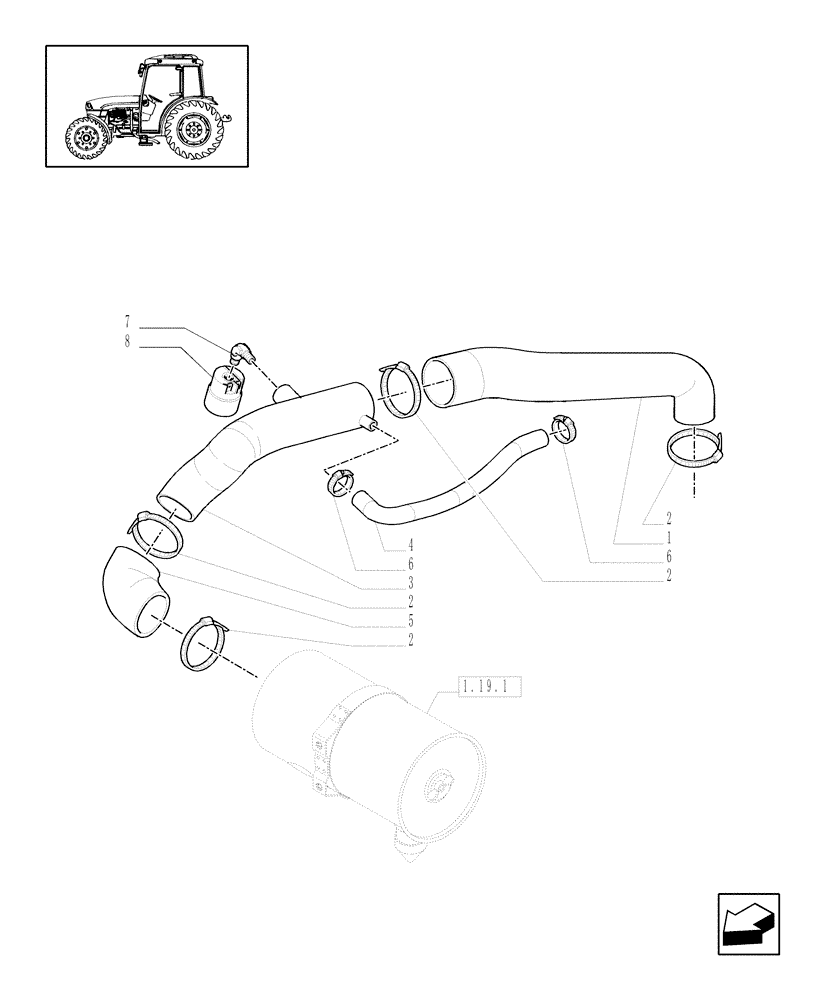

Запчасти Case IH JX1085C (1.19.7[02]) - AIR CLEANER PIPING - W/CAB (02) - ENGINE EQUIPMENT

1

87304854

FLEXIBLE HOSE,266.00 mm x 60.00 mm ID, 76 mm ID

1шт.

2

13001090

HOSE CLAMP,70mm - 90mm, Worm Gear

D=70-90

4шт.

3

87304855

RIGID TUBE,73 mm ID

1шт.

4

87304856

FLEXIBLE HOSE,22.00 mm ID x 341.00 mm

1шт.

5

87304852

INTAKE AIR HOSE,76.00 mm ID x 78.00

1шт.

6

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

D=20-30

2шт.

7

87530842

ELEC CONNECTOR

1шт.

8

5138821

INDICATOR

1шт.
