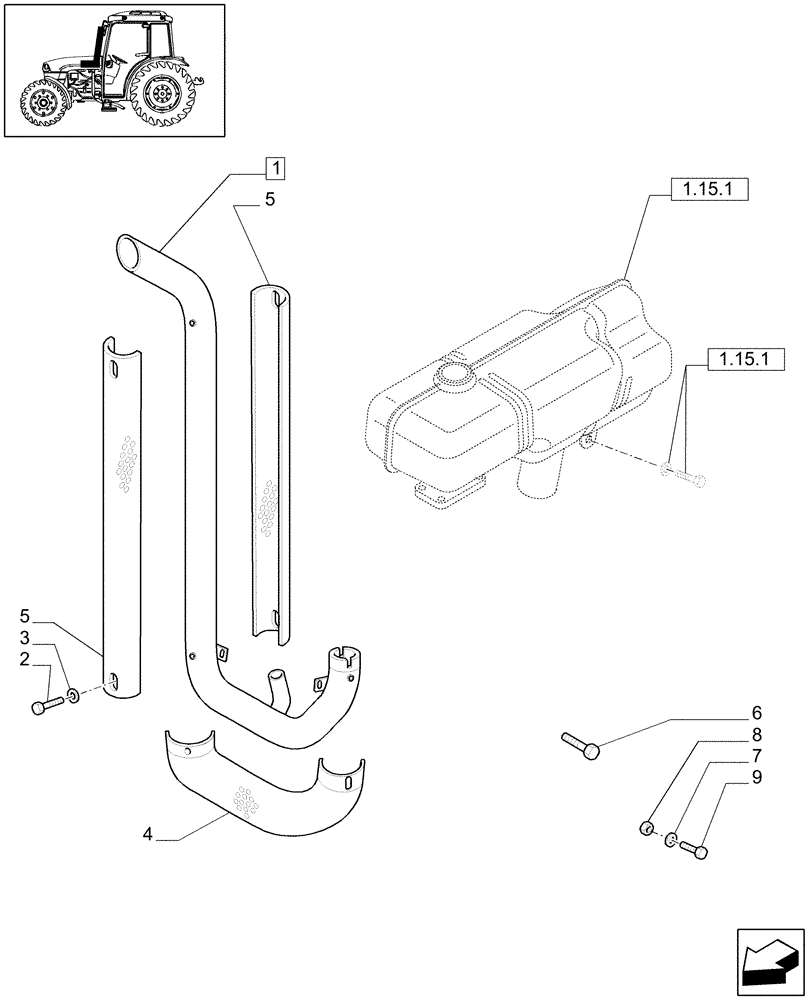

Запчасти Case IH JX1085C (1.15.1/02) - (VAR.199) AIR FILT. DUST EJECT. W/EXHA. GUARD SHIELD FOR VERTIC. EXHAUST - AIR FILTER EJECTOR (02) - ENGINE EQUIPMENT

1

87311427

RIGID TUBE

Incl. 2-5

1шт.

2

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

5шт.

3

14496404

WASHER,M6 x 12 x 2 Thk

5шт.

4

47135952

GUARD

1шт.

5

47133695

GUARD

2шт.

6

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

6

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

8

16100814

NUT,M8, Cl 8, DAC

1шт.

9

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.
