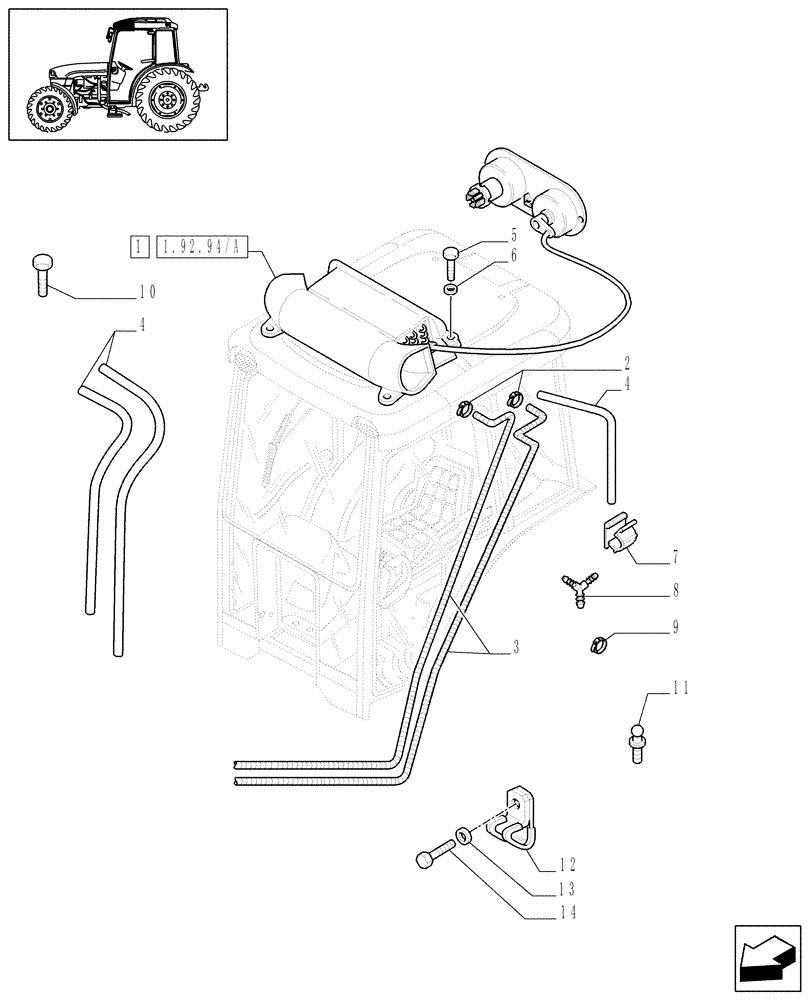

Запчасти Case IH JX1075C (1.92.94[03]) - CAB - HEATING SYSTEM (10) - OPERATORS PLATFORM/CAB

1

5192078

HEATER

ASSY

1шт.

2

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

D=16-25

4шт.

3

5196755

HEATER HOSE

RETURN, L=2640

1шт.

3

5196756

HEATER HOSE

L=3070, FEED

1шт.

4

19053382

HOSE,10.00 mm

1шт.

5

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

6

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

6

13578311

WASHER

D=8

2шт.

7

5182865

CLIP

1шт.

8

5186511

HYD CONNECTOR

DRAIN

1шт.

9

10187090

HOSE CLAMP,16mm - 18mm

D=16-18

2шт.

9

10186890

HOSE CLAMP,M14-16, Worm

1шт.

10

13278214

SCREW,M6 x 18mm

M6x18

10шт.

10

18770114

SCREW

M6x16

4шт.

11

15152011

BALL STUD

BALL PIN

10шт.

12

5185406

COLLAR

1шт.

13

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

14

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.
