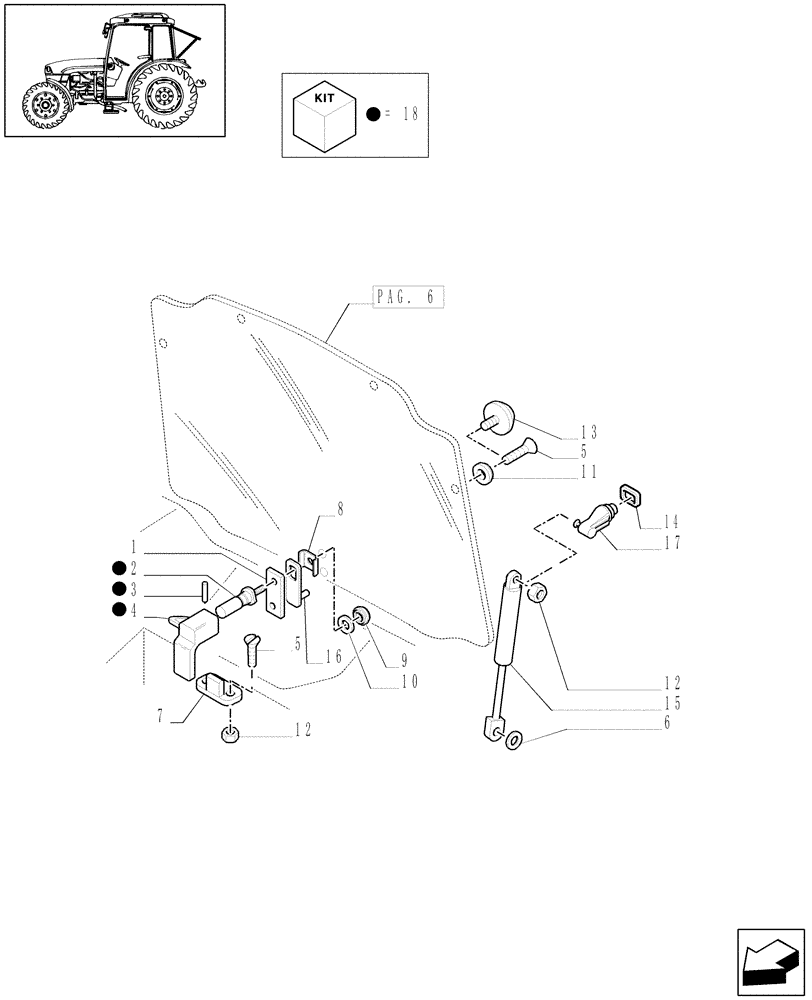

Запчасти Case IH JX1075C (1.92.92[07]) - CAB REAR WINDOW (10) - OPERATORS PLATFORM/CAB

1

44911521

COVER PLATE

4шт.

2

5183752

PIN,26mm OD x 64.5mm L

INCL. REF. 3,4

1шт.

3

14159970

LOCK PIN,M2.5 x 20, Slotted

1шт.

4

87656446

HANDLE

1шт.

5

5182238

HEX SOC SCREW,CSS, M8 x 1.25 x 35mm, Cl 8.8

M8x35

2шт.

6

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

7

44911574

STRIKER PLATE

, Serial Range: -C5745

1шт.

7

87656439

STRIKER PLATE

, Start Serial: D5745

1шт.

8

5113395

SEAL, GLASS,Window, 30mm L

1шт.

9

5120540

KNOB

8шт.

10

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

SEALRING

4шт.

11

44910150

SEALING WASHER,8.5mm ID x 39mm OD x 13mm Thk

2шт.

11

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

SEALRING

2шт.

12

5182241

NUT,Hex, M8 x 1.25 x 8.5mm, Cl 04

M8

8шт.

13

5131923

CAP,M8 x 11,5mm L

2шт.

14

5108658

GASKET,25mm x 32mm

2шт.

15

5192009

GAS STRUT

2шт.

16

5186866

PLATE

1шт.

17

5147439

SUPPORT

2шт.

18

87658582

HANDLE

ASSY

1шт.
