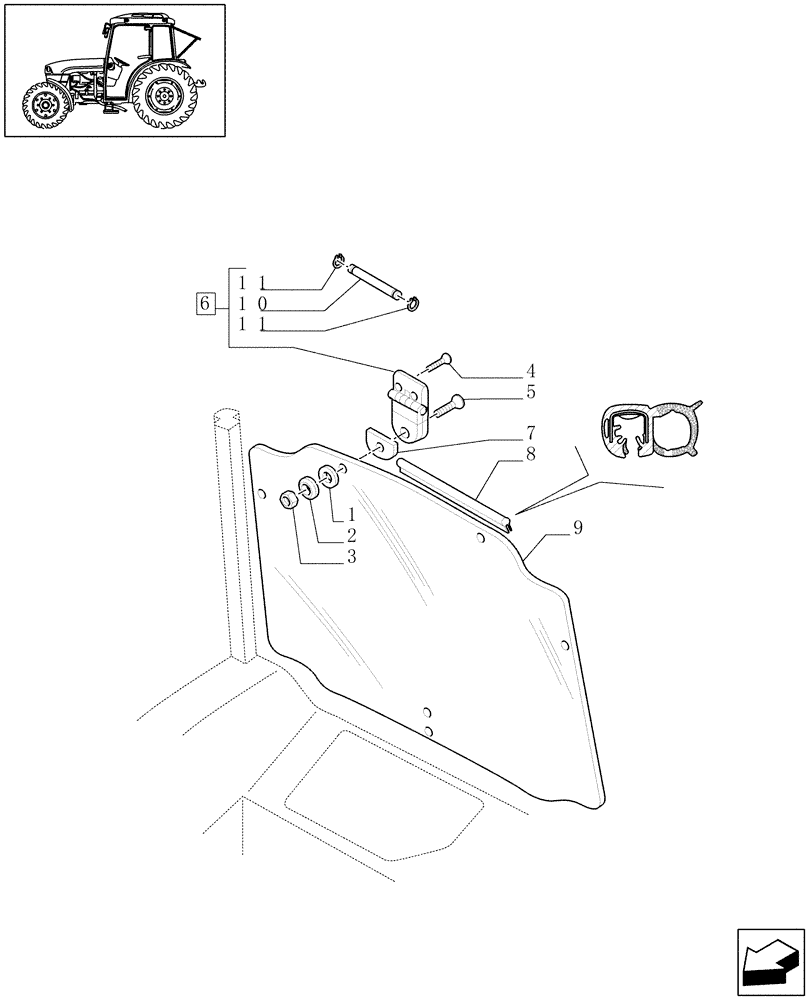

Запчасти Case IH JX1075C (1.92.92[06]) - CAB REAR WINDOW (10) - OPERATORS PLATFORM/CAB

1

44910151

GASKET,15mm ID x 39mm OD x 4.5mm Thk

4шт.

2

44911601

STOP

2шт.

3

5182282

NUT,M8 x 1.25 x 10.6mm H, Cl 8

M8

2шт.

4

5182236

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

M8x20

4шт.

5

5182238

HEX SOC SCREW,CSS, M8 x 1.25 x 35mm, Cl 8.8

M8x35

2шт.

6

5185205

HINGE

2шт.

7

5192646

SEAL,11mm ID x 26mm OD x 10.5mm Thk

RH

1шт.

7

5192749

SEAL

LH

1шт.

8

5196385

SEAL, GLASS,3555mm L

1шт.

9

44911502

CAB GLASS ASSY

REAR

1шт.

10

84155532

PIN,7.6mm OD x 87.8mm L

1шт.

11

11065676

SNAP RING,M8, Ext

2шт.
