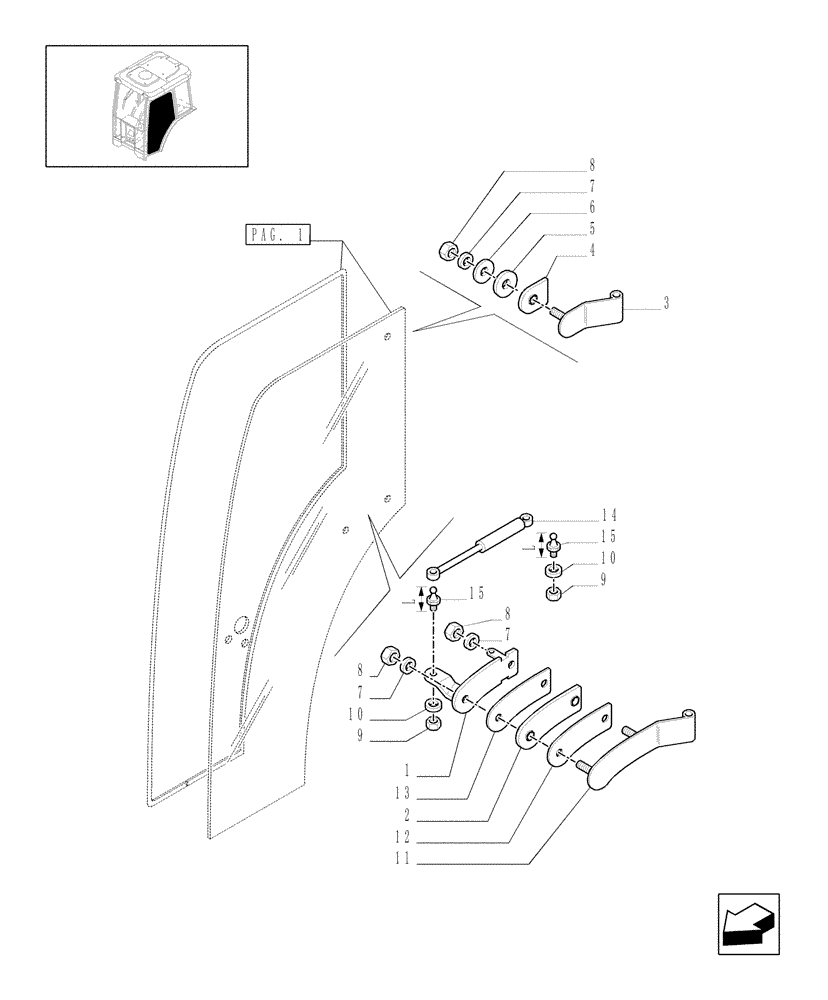

Запчасти Case IH JX1075C (1.92.92[02]) - CAB DOORS - C5188 (10) - OPERATORS PLATFORM/CAB

1

44911526

PLATE

RH

1шт.

1

44911527

PLATE

LH

1шт.

2

44910532

SEAL

OUTER

2шт.

3

44911540

HINGE

RH

1шт.

3

44911541

HINGE

LH

1шт.

4

44910469

GASKET

2шт.

5

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

SEALRING

2шт.

6

44911666

SEAL,6mm ID x 32mm OD x 3mm Thk

4шт.

7

12646204

WASHER,8.15mm ID x 35mm OD x 3mm Thk

4шт.

8

5182241

NUT,Hex, M8 x 1.25 x 8.5mm, Cl 04

M8

6шт.

9

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

4шт.

10

5182303

WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

8x15

4шт.

11

44911538

HINGE

RH

1шт.

11

44911539

HINGE

LH

1шт.

12

44910533

SEAL

2шт.

13

44911552

SEAL

INNER

2шт.

14

5191712

GAS STRUT,191mm Extended, 144.5mm Compressed

L=MIN46.5 MAX191

2шт.

15

44910148

BALL STUD,M8 x 1.25

L=32

4шт.

15

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN L = 29.5

2шт.
