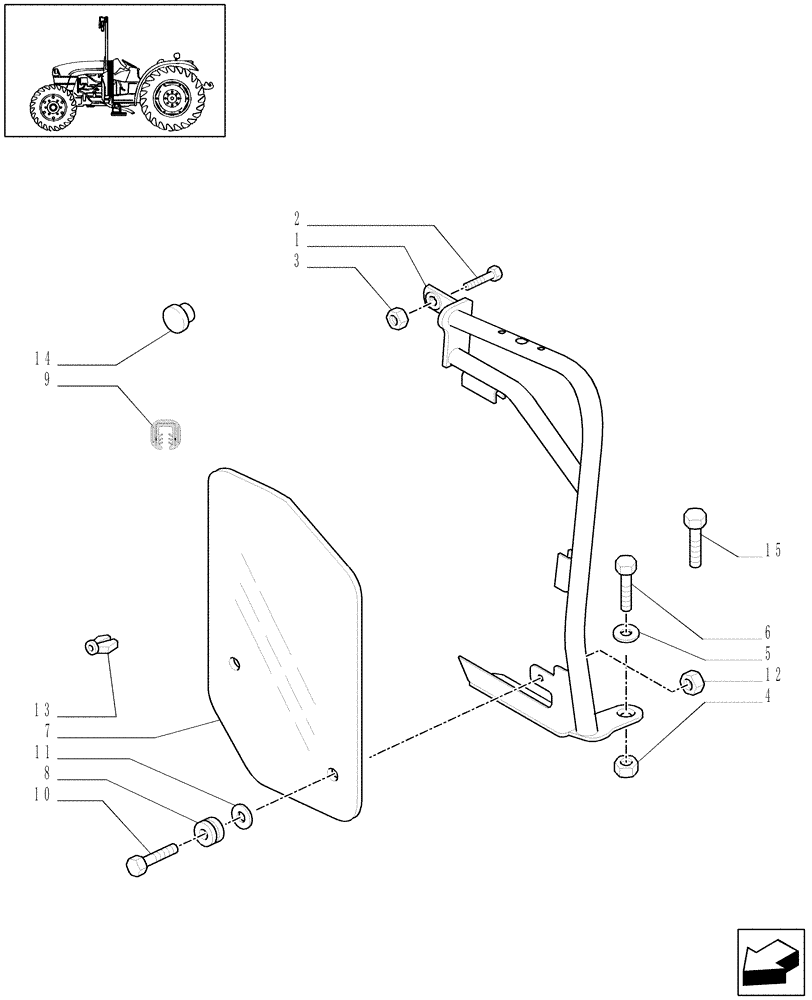

Запчасти Case IH JX1075C (1.92.87/03[02]) - (VAR.105) NOISE REDUCTION PACKAGE - MUDGUARDS AND FOOTBOARDS (10) - OPERATORS PLATFORM/CAB

1

47123954

HANDRAIL

LH

1шт.

1

47127136

HANDRAIL

RH

1шт.

2

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

6шт.

3

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

4

12164714

NUT,M10 x 1.25, Cl 8

4шт.

5

12625221

WASHER,8.15mm ID x 20mm OD x 1mm Thk

D=8

4шт.

6

14781814

SCREW,Cross Rec Cheese Hd, M8 x 18mm, Cl 5.8

4шт.

7

47123953

CAB GLASS ASSY

2шт.

8

10397380

GROMMET

M10

2шт.

9

47126928

GASKET

L=1355

2шт.

10

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

4шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

12

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

13

14115781

GROMMET

4шт.

14

5196779

PLUG,Cap locking hole

6шт.

15

14442624

SET SCREW,Hex Soc, M10 x 25mm, Flat Pt

4шт.
