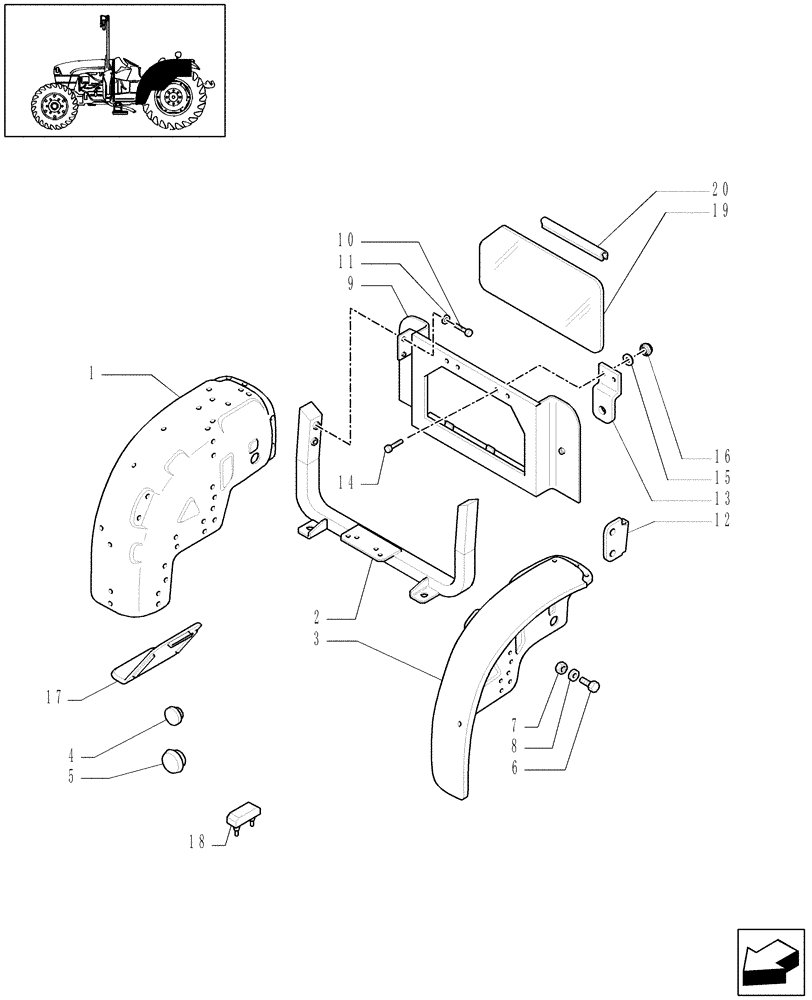

Запчасти Case IH JX1075C (1.92.87/03[01]) - (VAR.105) NOISE REDUCTION PACKAGE - MUDGUARDS AND FOOTBOARDS (10) - OPERATORS PLATFORM/CAB

1

5175036

REAR FENDER

RH, Serial Range: -HJE008145

1шт.

1

47134366

PANEL

, Start Serial: HJE008146

1шт.

2

5175429

U-FRAME

1шт.

3

47123863

REAR FENDER

LH

1шт.

4

14508387

PLUG

D=55

2шт.

5

5115440

PLUG,38.5mm

D=38.5

2шт.

6

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

4шт.

6

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

4шт.

6

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

16шт.

6

14141411

SCREW,M6 x 20mm

M6 x 20

2шт.

7

12164714

NUT,M10 x 1.25, Cl 8

2шт.

7

12574211

NUT,M6 x 1, Cl 8

2шт.

8

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

24шт.

9

5199189

BULKHEAD

1шт.

10

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

11

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

12

5199188

BRACKET

LH

1шт.

12

5199187

BRACKET

RH

1шт.

13

47132738

BRACKET

2шт.

14

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

15

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

16

5120540

KNOB

4шт.

17

5186509

PLUG

1шт.

18

5168078

RUBBER PAD

2шт.

19

44911518

CAB GLASS ASSY

1шт.

20

47132744

RUBBER STRIP

1шт.
