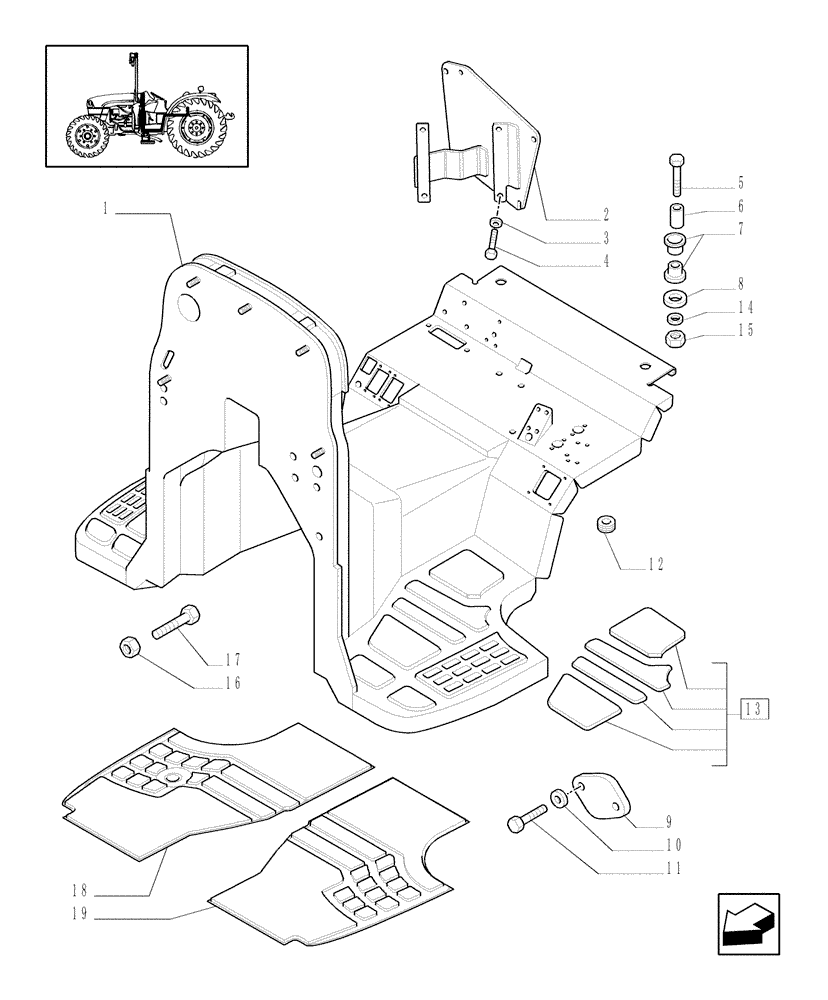

Запчасти Case IH JX1075C (1.92.87[01]) - MUDGUARDS AND FOOTBOARDS (10) - OPERATORS PLATFORM/CAB

1

47128376

PLATFORM

L/CAB

1шт.

2

47133838

LOCKING TAB

1шт.

3

12035670

LOCK WASHER

M6, L/Cab

4шт.

4

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

4шт.

5

15541424

SCREW,Hex, M12 x 1.25 x 80mm, Cl 8.8

2шт.

6

5168604

SPACER,12.25mm ID x 17mm OD x 40mm L

2шт.

7

5187531

RUBBER WASHER,16.5mm ID x 60mm OD x 20mm Thk

4шт.

8

5177774

SPACER

D=12

2шт.

9

5191269

COVER PLATE

1шт.

10

12035670

LOCK WASHER

M6

2шт.

11

13276114

SCREW,Pozidriv Pan Hd, M6 x 14mm

2шт.

12

10403680

INSULATING RING,28mm ID x 46mm OD x 11mm Thk

28x1.5

1шт.

13

47123111

FOOT BOARD

RH ASSY

1шт.

13

47123102

FOOT BOARD

LH ASSY

1шт.

14

11190879

BELLEVILLE WASHER,M12 Bolt Size x 30mm OD

4шт.

15

16101524

NUT,M12 x 1.25, Cl 10

2шт.

16

12574221

NUT,M6 x 1, Cl 10

2шт.

17

15541524

SCREW,Hex, M12 x 1.25 x 90mm, Cl 8.8

2шт.

18

5188928

MAT

RH, (EQUIP.105)

1шт.

19

5188898

MAT

LH, (EQUIP.105)

1шт.
