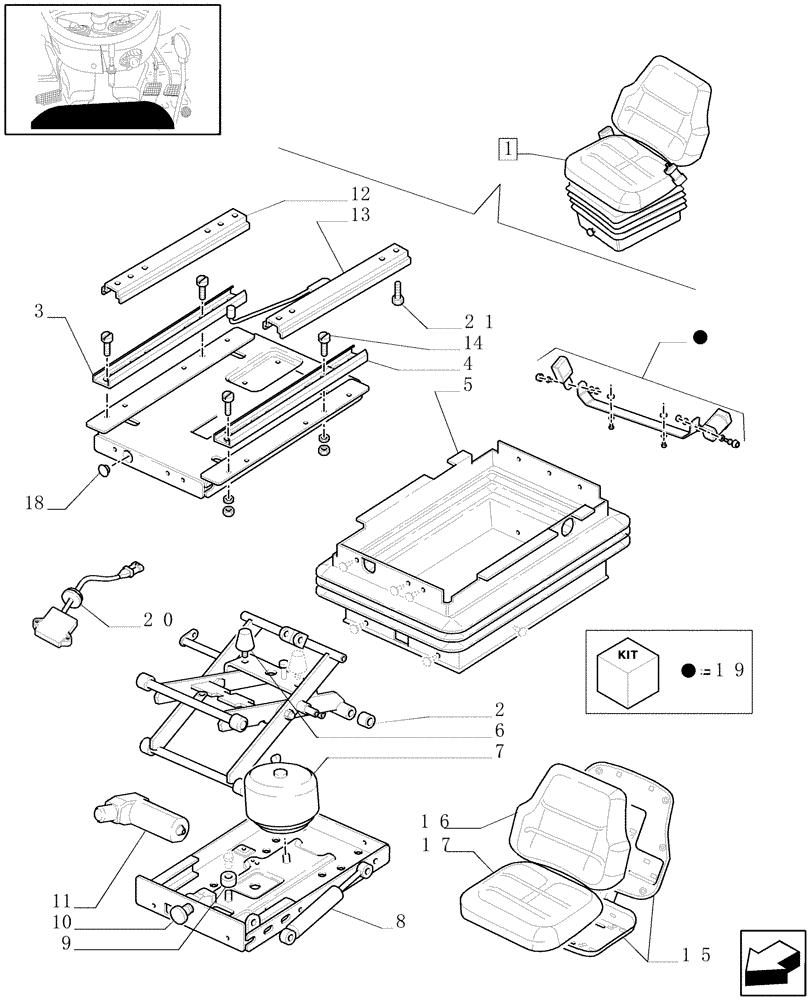

Запчасти Case IH JX1075C (1.92.85/03A) - (VAR.850) "MT" SEAT WITH AIR SUSPENSION WITH BELTS AND SWITCH - BREAKDOWN - W/CAB - C6330 (10) - OPERATORS PLATFORM/CAB

1

47129031

DRIVER SEAT

ASSY, Serial Range: -C5798

1шт.

Fabric Case

1шт.

1

87751929

DRIVER SEAT

ASSY, Start Serial: D5798

1шт.

Fabric Case with Increased Seat Back and Cushion

1шт.

2

47127024

BUSHING

4шт.

3

5197885

GUIDE

RH

1шт.

4

5197884

GUIDE

LH

1шт.

5

5197883

BELLOWS

1шт.

6

5197882

RUBBER PAD

2шт.

7

5197881

SPRING

1шт.

8

5197878

SHOCK ABSORBER

1шт.

9

5197877

SPEED GOVERNOR

1шт.

10

5197880

PUSH BUTTON

1шт.

11

47127025

AIR COMPRESSOR

1шт.

Includes Compressor, Air Hose and Electrical Leads

1шт.

12

47127060

GUIDE

1шт.

13

47127061

GUIDE

1шт.

14

5197858

SCREW,M8 x 20mm, Cl 8.8

4шт.

16

47131868

SEAT BACK

, Serial Range: -C5798

1шт.

16

NSS

NOT SOLD SEPARAT

, Start Serial: D5798

1шт.

17

47131871

SEAT CUSHION

, Serial Range: -C5798

1шт.

17

NSS

NOT SOLD SEPARAT

, Start Serial: D5798

1шт.

18

47136906

PLUG

1шт.

19

47135573

KIT

1шт.

20

87552427

SWITCH,Operator Presence

1шт.

21

84263436

SCREW

1шт.
