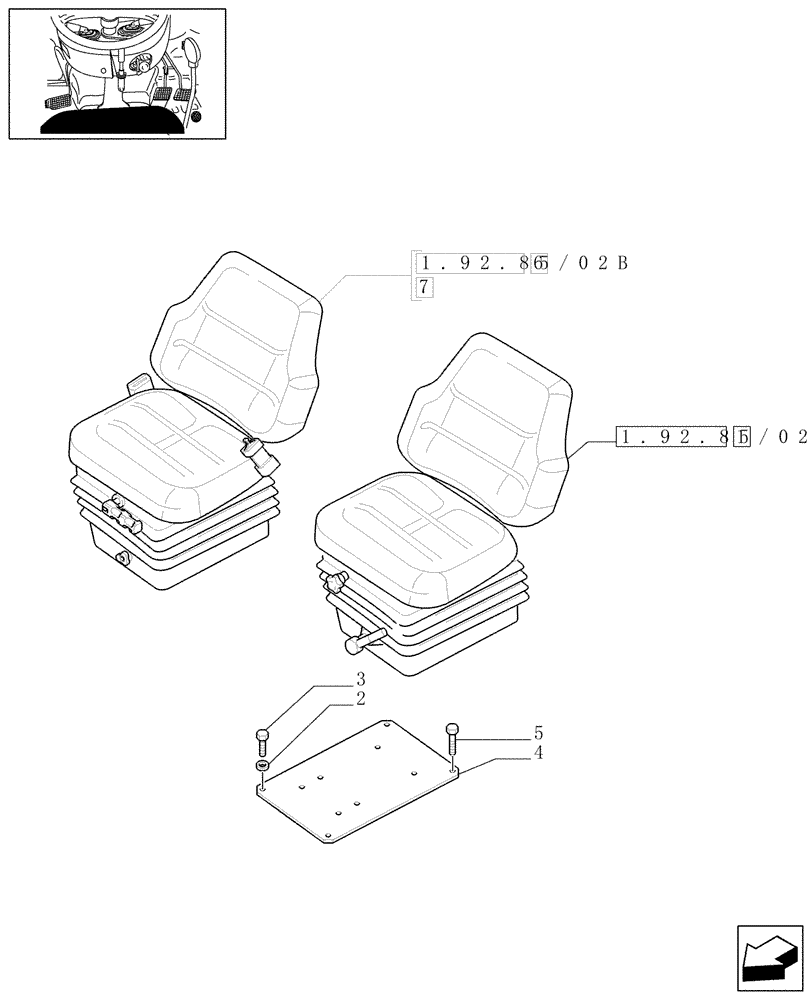

Запчасти Case IH JX1075C (1.92.85/02) - (VAR.962-963) "MT" SEAT WITH SWITCH - W/CAB (10) - OPERATORS PLATFORM/CAB

1

47129028

DRIVER SEAT

ASSY, W/Micro Switch, VAR.962, Serial Range: -C5644

1шт.

MT SC78M91, Mech. Suspension CASE Fabric

1шт.

1

47129029

DRIVER SEAT

ASSY, W/Micro & Belts, VAR.963, Serial Range: -C5644

1шт.

MT SC78M91, Mech. Suspension CASE Fabric

1шт.

2

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

8x16

4шт.

3

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

M8x22

4шт.

4

5180356

PLATE

1шт.

5

14441927

SCREW,FLAT, M8 x 16mm, Cl 8.8

4шт.

6

87553347

DRIVER SEAT

ASSY, W/Micro Switch, VAR.962, Serial Range: D5644-C5798

1шт.

MT SC78M200, Mech. Suspension CASE Fabric

1шт.

6

87553350

DRIVER SEAT

ASSY, W/Micro & Belts, VAR.963, Serial Range: D5644-C5798

1шт.

MT SC78M200, Mech. Suspension CASE Fabric

1шт.

6

87751906

DRIVER SEAT

ASSY, W/Micro Switch, VAR.962, Serial Range: D5798-C6330

1шт.

With Increased Seat Back and Cushion

1шт.

MT SC88M200, Mech. Suspension CASE Fabric

1шт.

6

87751913

DRIVER SEAT

ASSY, W/Micro & Belts, VAR.963, Start Serial: D5798

1шт.

With Increased Seat Back and Cushion

1шт.

MT SC88M200, Mech. Suspension CASE FABRIC

1шт.

7

84164860

DRIVER SEAT

ASSY, W/Micro & Belts VAR.962, Start Serial: D6330

1шт.

With Increased Seat Back and Cushion

1шт.

MT SC88M200, Mech. Suspension CASE Fabric

1шт.

7

84164862

DRIVER SEAT

ASSY, W/Micro & Belts VAR.963, Start Serial: D6330

1шт.

With Increased Seat Back and Cushion

1шт.

MT SC88M200, Mech. Suspension CASE FABRIC

1шт.
