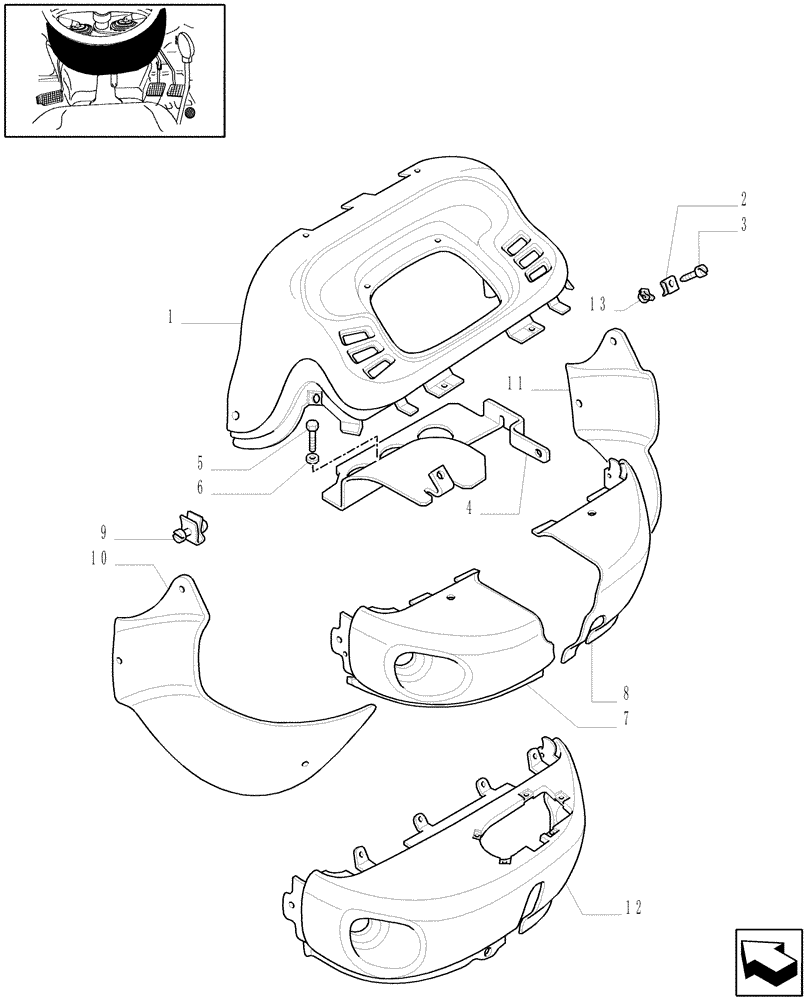

Запчасти Case IH JX1075C (1.92.83) - FRONT CONSOLE TRIM (10) - OPERATORS PLATFORM/CAB

1

5199936

INSTRUMENT PANEL

1шт.

2

14189974

BRACKET,J, #6

9шт.

2

5175702

NUT

W/CAB, Serial Range: -HJH079422

2шт.

3

5182249

SELF-TAP SCREW,Pan Hd, M4.2 x 1.4 x 13mm

8x13

9шт.

4

5174515

BRACKET

RH

1шт.

5

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

6

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

7

5175855

COVER

LH

1шт.

8

5194915

HOOD

RH

1шт.

8

5175854

COVER

RH, JX1070C,JX1075C, VAR.838-839

1шт.

9

5174673

FASTENER,12mm OD

6шт.

10

5175279

SIDE PANEL

LH

1шт.

11

5194913

SIDE PANEL

RH, W/CAB

1шт.

11

5175903

SIDE PANEL

RH, JX1070C,JX1075C, VAR.838-839

1шт.

12

47123126

COWLING

VAR.139-275-278, L/CAB

1шт.

13

14372671

SPRING NUT,M4.2, U, 12.4mm long

W/CAB, Start Serial: HJH079423

2шт.
