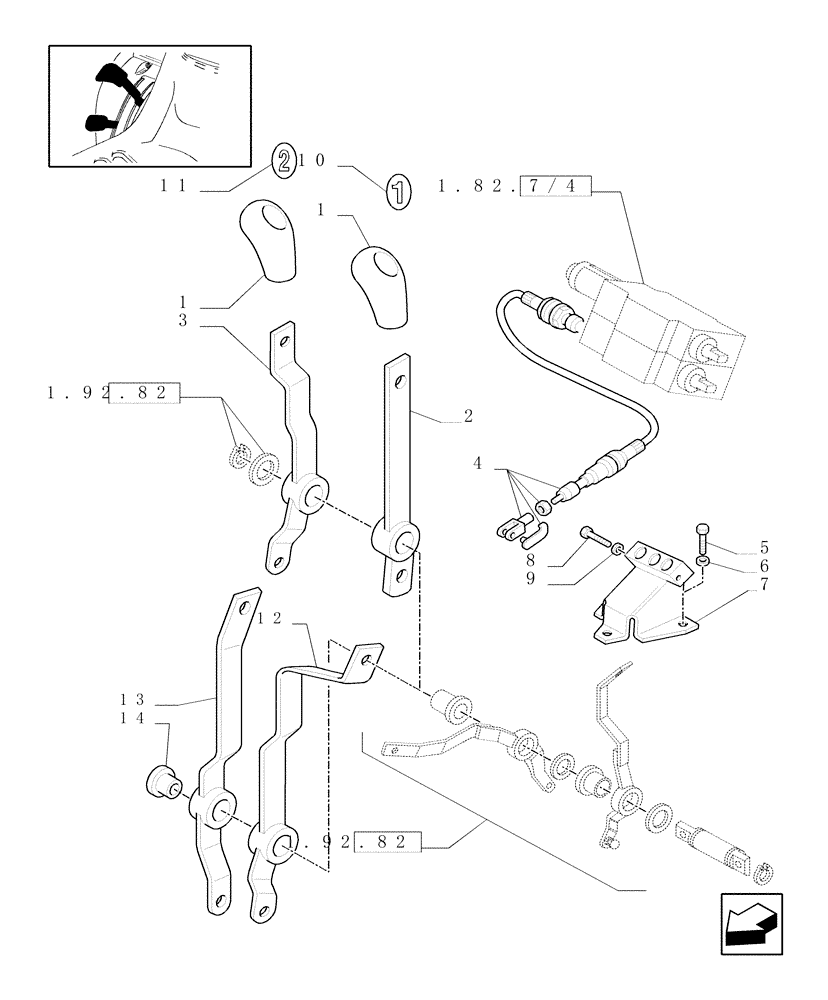

Запчасти Case IH JX1075C (1.92.82/03) - (VAR.027) 2 REMOTE VALVES FOR MID-MOUNT AND MDC - LEVERS (10) - OPERATORS PLATFORM/CAB

1

47056482

KNOB

2шт.

2

5175883

LEVER

, Serial Range: -HJE030921

1шт.

3

5175886

LEVER

1шт.

4

5199209

CABLE,900mm L

1шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

6

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

7

47127691

SUPPORT

1шт.

8

14301624

HEX SOC SCREW,M5 x 70mm, Cl 8.8

1шт.

9

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

1шт.

10

47057199

IDEOGRAM

1шт.

11

47057200

IDEOGRAM

, Serial Range: -HJE030921

1шт.

12

47127677

LEVER

, Start Serial: HJE030922

1шт.

13

47124727

LEVER

, Start Serial: HJE030922

1шт.

14

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

, Start Serial: HJE030922

1шт.
