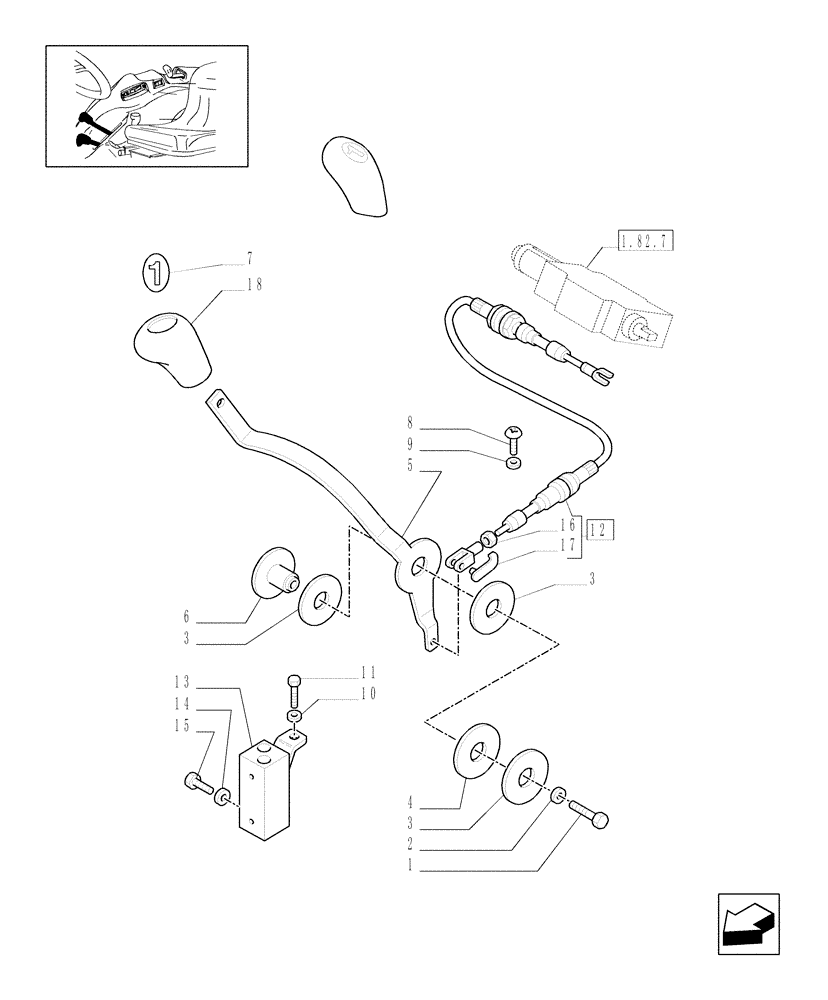

Запчасти Case IH JX1075C (1.92.82[04]) - SIMPLE DOUBLE EFFECT DISTRIBUTOR - LEVER AND KNOB (10) - OPERATORS PLATFORM/CAB

1

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

2

11190674

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD

1шт.

3

5170694

SHIM,21mm ID x 50mm OD x 2mm Thk

3шт.

4

5170693

SPACER,21mm ID x 50mm OD x 5mm L

1шт.

5

5175513

LEVER

1шт.

6

5181731

PIN

, Serial Range: -HJE065795

1шт.

6

87378227

PIN,21mm OD x 18.3mm L

, Start Serial: HJE065796

1шт.

7

47057199

IDEOGRAM

Green

1шт.

8

14358920

HEX SOC SCREW,M5 x 45mm, Cl 8.8, Full Thd

1шт.

9

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

1шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

11

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

12

5199208

CABLE

1шт.

13

5180579

PLATE

1шт.

14

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

15

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

9971642

NUT

1шт.

17

9971641

YOKE

1шт.

18

47056482

KNOB

1шт.
