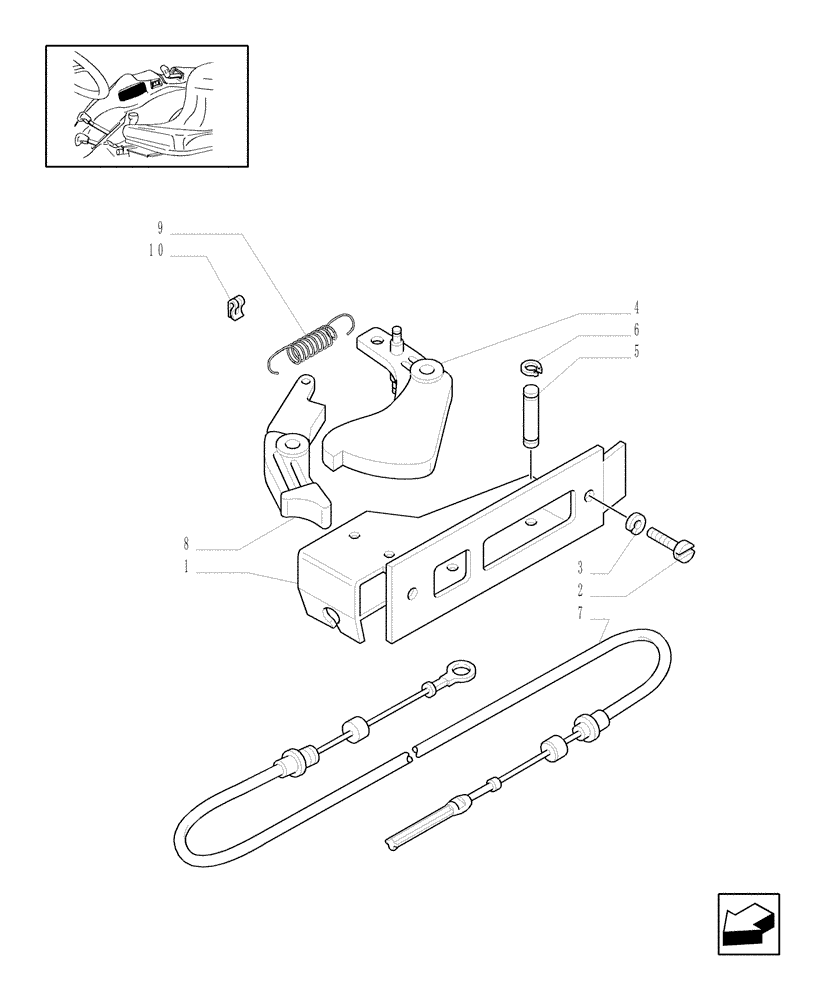

Запчасти Case IH JX1075C (1.92.82[02]) - LIFTER OUTER CONTROLS (10) - OPERATORS PLATFORM/CAB

1

47125914

SUPPORT

1шт.

2

13276477

SCREW,Pozidriv Pan Hd, M6 x 20mm, Full Thd, SST

2шт.

3

10519477

WASHER,6.45mm ID x 12mm OD x 1.5mm Thk

6x12

2шт.

4

87570910

LEVER

1шт.

5

5128637

PIN,6mm OD x 24mm L

1шт.

6

86507012

SNAP RING,M6, Ext

4шт.

7

5183050

CABLE

1шт.

8

47125425

PUSH BUTTON

Fast Control (Lift-O-Matic)

1шт.

9

5128638

SPRING

1шт.

10

11063876

SPRING CLIP,M5 x 4mm

2шт.
