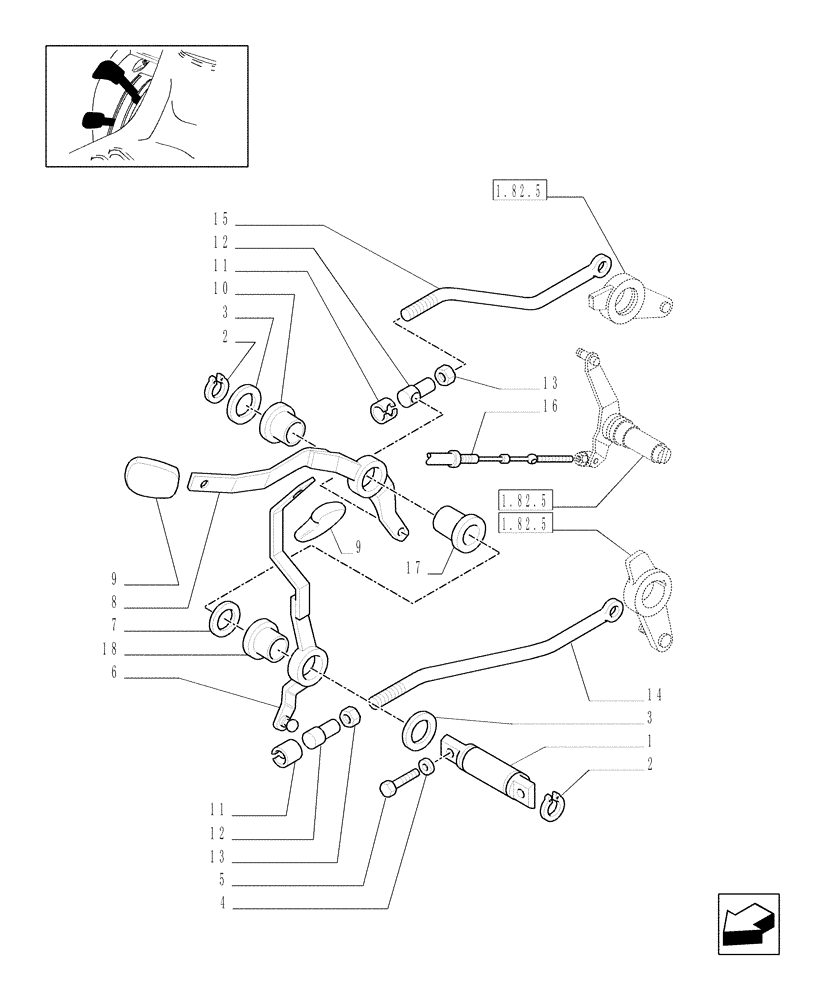

Запчасти Case IH JX1075C (1.92.82[01]) - LIFTER OUTER CONTROLS (10) - OPERATORS PLATFORM/CAB

1

47127819

PIN

1шт.

2

11064076

CLIP,M8 x 5 x 0.94mm

2шт.

3

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

D = 35 x 21 x 2

2шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

5

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

L/Cab

2шт.

6

5180104

LEVER

DRAUGHT

1шт.

7

5154840

SHIM,21mm ID x 35mm OD x 2mm Thk

1шт.

8

5180182

LEVER

POSITION

1шт.

9

47056498

KNOB

1шт.

10

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

2шт.

11

10125574

CLAMP,13mm

2шт.

12

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

2шт.

13

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

14

5175447

TIE-ROD

DRAUGHT

1шт.

15

5175446

LEVER

POSITION

1шт.

16

5183050

CABLE

1шт.

17

5154839

SPACER,21mm ID x 35mm OD x 22mm L

21x35x22

2шт.
