(1.92.76/ A) - LIGHTING COMPONENTS - BREAKDOWN - W/CAB

Запчасти Case IH JX1075C (1.92.76/ A) - LIGHTING COMPONENTS - BREAKDOWN - W/CAB (10) - OPERATORS PLATFORM/CAB

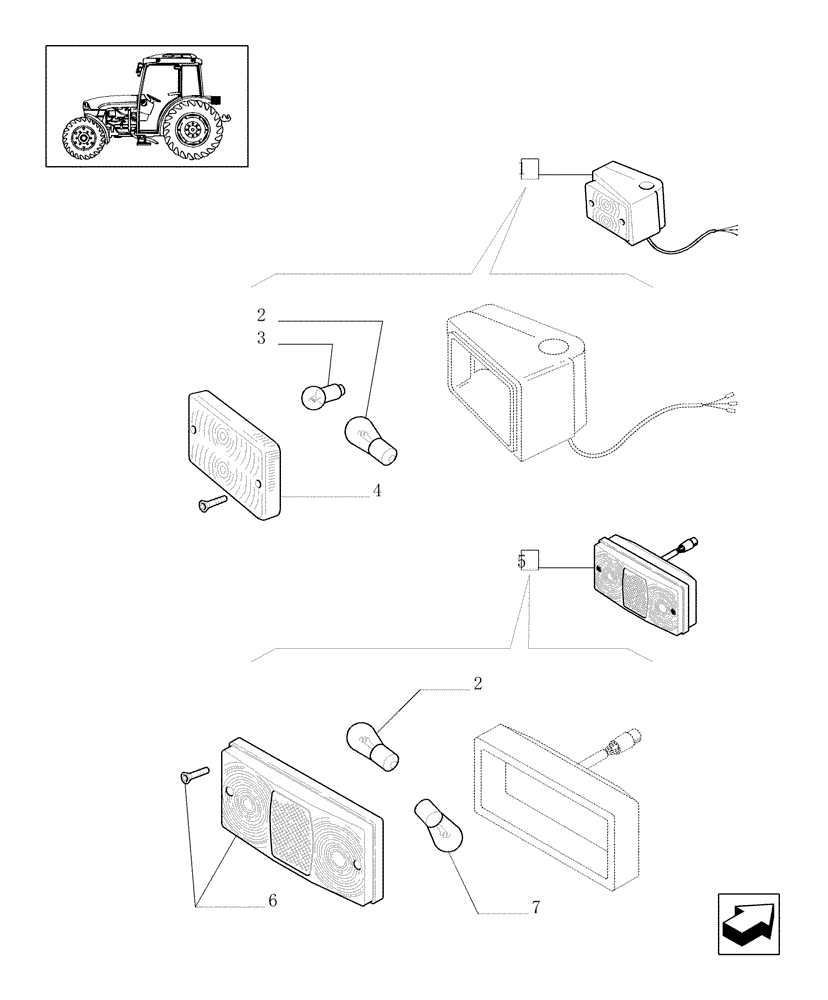

Схема запчастей Case IH JX1075C - (1.92.76/ A) - LIGHTING COMPONENTS - BREAKDOWN - W/CAB (10) - OPERATORS PLATFORM/CAB
2
1
7
5
4
2
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82009121

FRONT LAMP,12V, 21W, Amber/Clear

ASSY, LH

1шт.

1

82009122

FRONT LAMP,12V, 21W, Amber/Clear

ASSY, RH

1шт.

2

529068

BULB,#1156, 12V, 21W

1шт.

3

10857790

BULB,R10W, 12V, 5W

4шт.

4

71316700

LENS

Clear and Amber

2шт.

5

5170315

TAIL LAMP,12V, 21W, Amber/Red

ASSY

2шт.

6

9971658

LENS

Red

2шт.

7

14144690

BULB,P21/5W, 12V, 21/5W

12V-5/21W

1шт.
