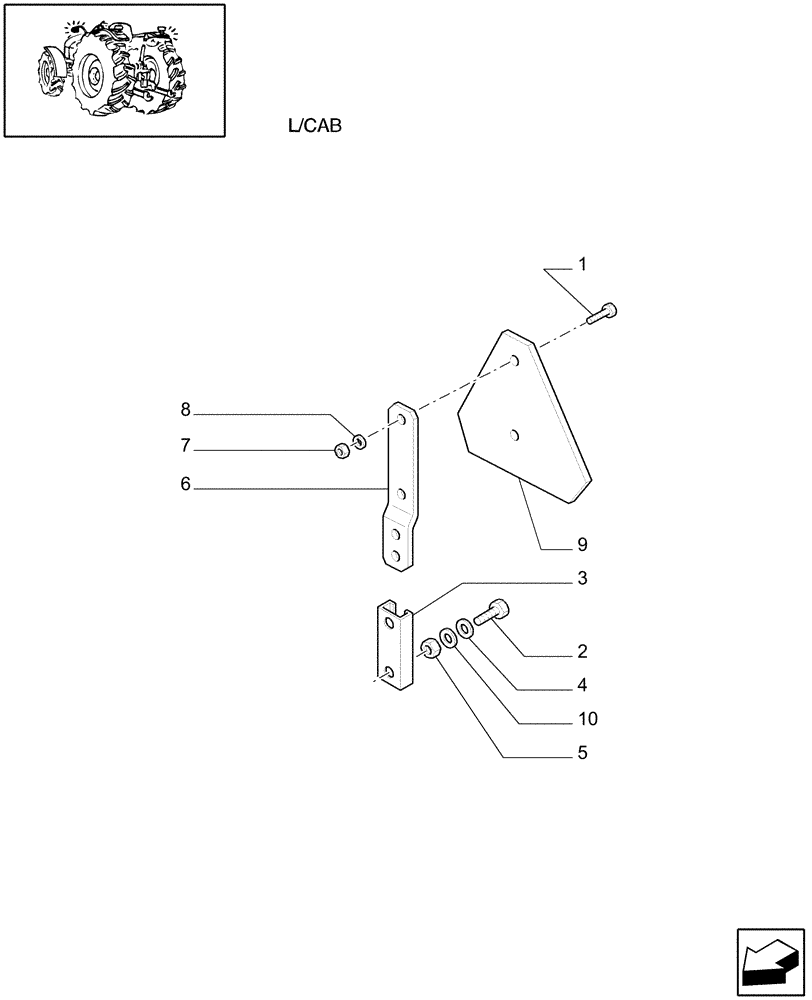

Запчасти Case IH JX1075C (1.92.76/02[04]) - (VAR.007) NA PACKAGE- RETROREFLECTOR SUPPORT - L/CAB (10) - OPERATORS PLATFORM/CAB

1

13276017

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

2шт.

2

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

3

5148517

SUPPORT

1шт.

4

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

5

16100821

NUT,M8, Cl 10

2шт.

6

5148516

BRACKET

1шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

8

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

2шт.

9

86547710

EMBLEM

KIT SMV

1шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.
