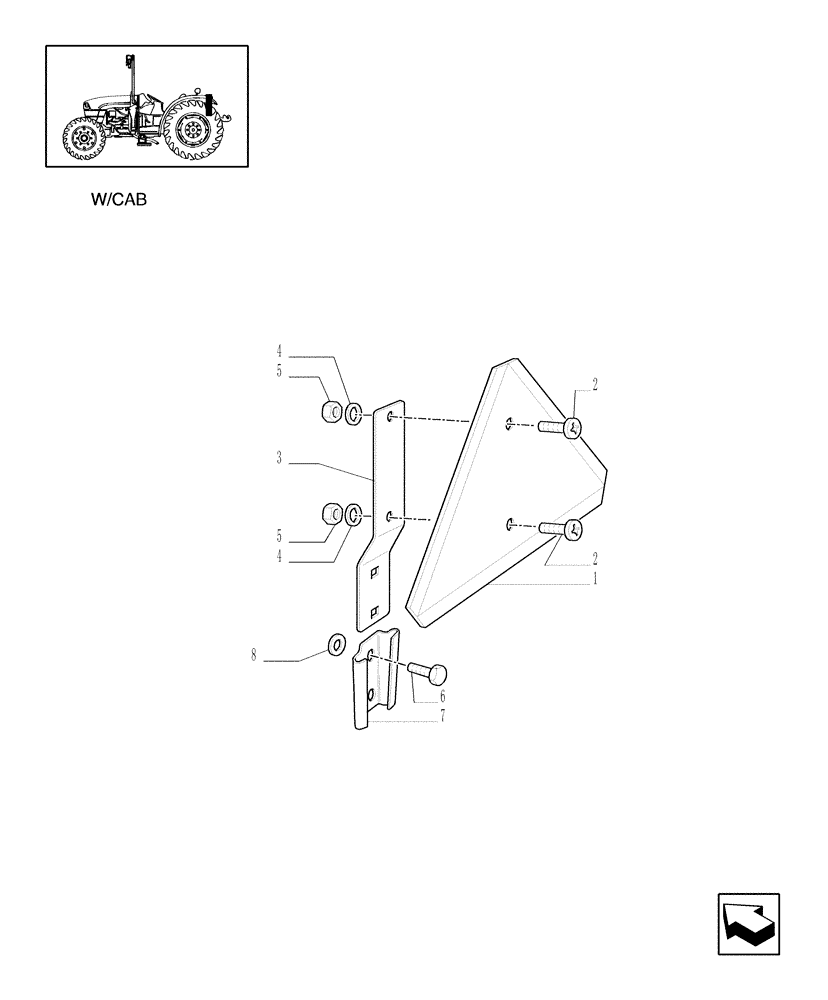

Запчасти Case IH JX1075C (1.92.76/02[03]) - (VAR.007) NA PACKAGE- RETRO-REFLECTOR AND SUPPORT - W/CAB (10) - OPERATORS PLATFORM/CAB

1

86547710

EMBLEM

KIT SMV

1шт.

2

10376724

SCREW,Sl, Pan Hd, M6 x 16mm

2шт.

3

5148516

BRACKET

1шт.

4

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

2шт.

5

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

6

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

2шт.

7

5148517

SUPPORT

1шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.
