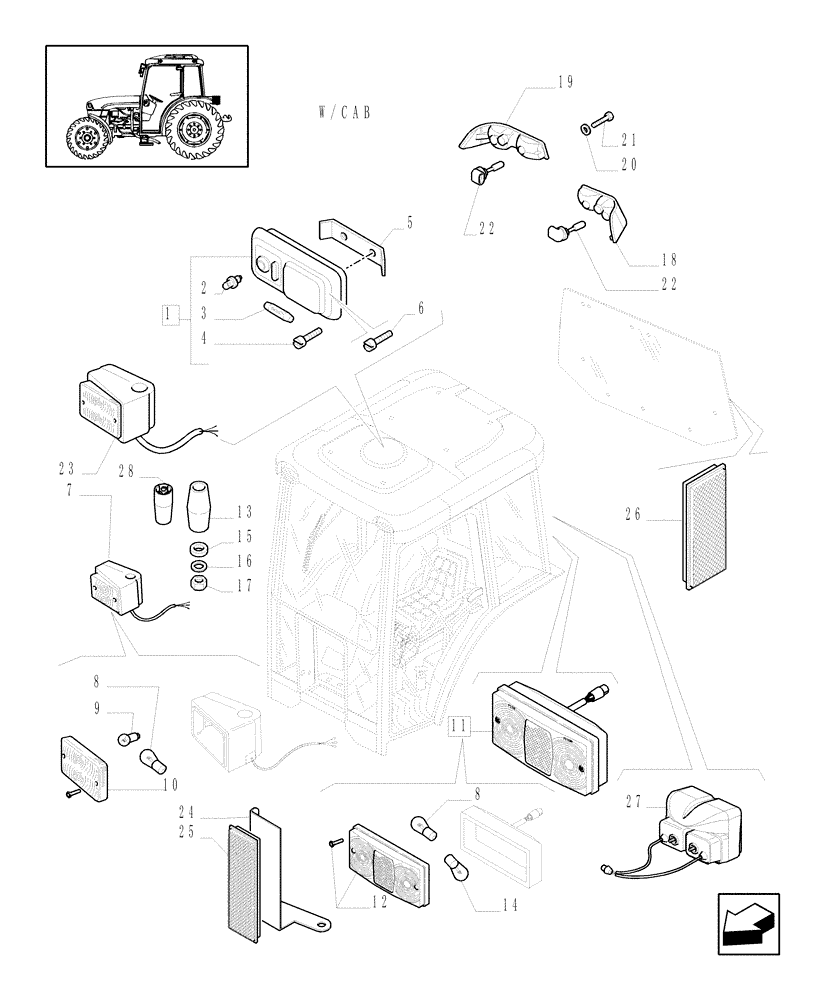

Запчасти Case IH JX1075C (1.92.76/02[01]) - (VAR.007) NA PACKAGE- LIGHTING COMPONENTS (10) - OPERATORS PLATFORM/CAB

1

5141635

CEILING LAMP

ASSY

1шт.

2

14144190

BULB,W5W, 12V, 5W

12V/5W

1шт.

3

10863090

BULB,C5W, 12V, 5W

1шт.

4

15902604

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 9.50mm

2шт.

5

44911604

BRACKET

1шт.

6

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

7

82009121

FRONT LAMP,12V, 21W, Amber/Clear

LH

1шт.

7

82009122

FRONT LAMP,12V, 21W, Amber/Clear

RH

1шт.

8

529068

BULB,#1156, 12V, 21W

4шт.

9

10857790

BULB,R10W, 12V, 5W

2шт.

10

71316700

LENS

Clear and Amber

2шт.

11

5170315

TAIL LAMP,12V, 21W, Amber/Red

2шт.

12

9971658

LENS

Red

2шт.

13

12329380

GROMMET

, Serial Range: -HJH079422

2шт.

14

14144690

BULB,P21/5W, 12V, 21/5W

12V-5/21W

2шт.

15

10399580

GROMMET,8mm ID x 14mm GRV ø x 20mm OD x 8mm Thk

D=8

2шт.

16

5155698

GASKET

4шт.

17

14084111

LOCK NUT,M5 x .8, Flg

4шт.

18

279224A1

WARNING LIGHT

LH

1шт.

19

279223A1

WARNING LIGHT

RH

1шт.

20

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

2шт.

21

14496429

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

4шт.

22

323094A1

BULB

37W

2шт.

23

5198316

FRONT LAMP

RH, Amber

1шт.

23

5198317

FRONT LAMP

LH, Amber

1шт.

24

87531430

SUPPORT

LH

1шт.

24

87531431

SUPPORT

RH

1шт.

25

5198373

REFLECTOR

, Serial Range: -HJE029079

2шт.

26

82034755

REFLECTOR,RED

, Start Serial: HJE029080

2шт.

27

47136930

TAIL LAMP

RH

1шт.

27

47136931

TAIL LAMP

LH

1шт.

28

47135267

ELEC CONNECTOR,Female, 4 Cavities

, Start Serial: HJH079423

2шт.
