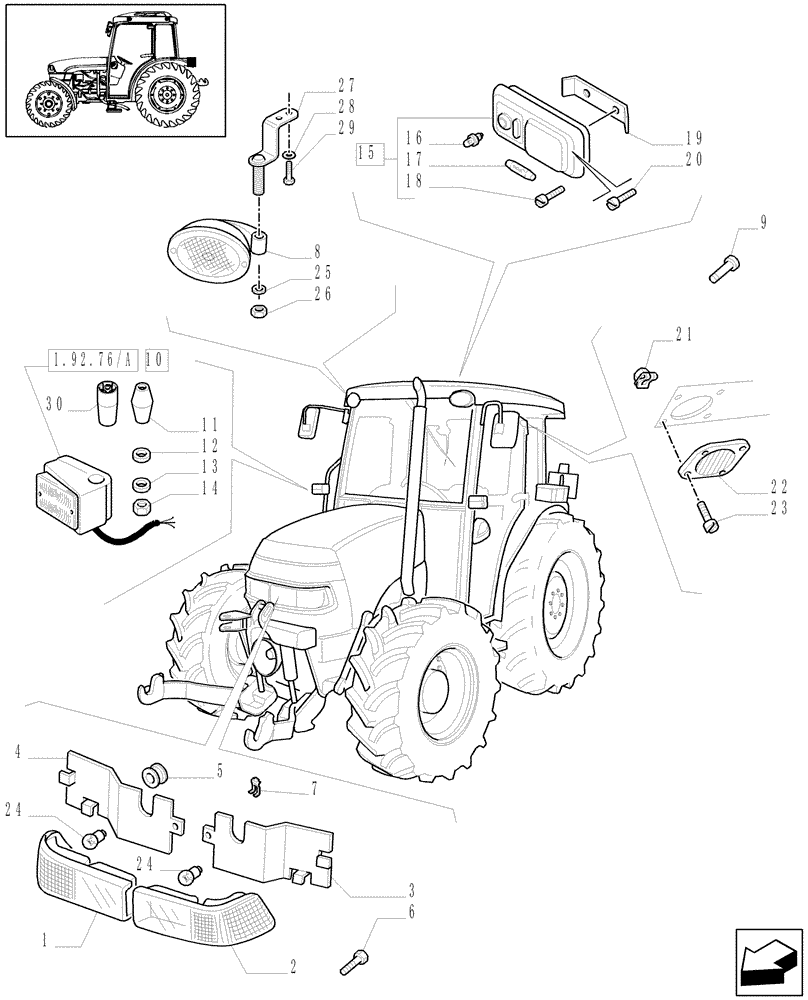

Запчасти Case IH JX1075C (1.92.76[01]) - LIGHTING COMPONENTS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

232448A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

RH, Incl. 24

1шт.

1

232450A2

HEADLIGHT,12V

RH, VAR.760, Incl. 24

1шт.

1

232452A1

HEADLIGHT

RH, VAR.007, Incl. 24

1шт.

2

232449A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

LH, Incl. 24

1шт.

2

232451A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

LH, VAR.760, Incl. 24

1шт.

2

232453A1

HEADLIGHT

LH, VAR.007, Incl. 24

1шт.

3

47127433

BRACKET

LH

1шт.

4

47127434

PLATE

RH

1шт.

5

47127368

GROMMET

2шт.

6

10559807

SELF-TAP SCREW,Hex Flg, M6.3 x 16mm

2шт.

6

10559907

SELF-TAP SCREW,Hex Flg, M6.3 x 19mm

6шт.

7

44995046

CLIP

6шт.

8

47057120

HEADLAMP

LH

2шт.

8

47057125

HEADLAMP

RH

2шт.

9

5158445

PLUG

D=6

2шт.

10

82009122

FRONT LAMP,12V, 21W, Amber/Clear

RH

1шт.

10

82009121

FRONT LAMP,12V, 21W, Amber/Clear

LH

1шт.

11

12329380

GROMMET

, Serial Range: -HJH079422

2шт.

12

10399580

GROMMET,8mm ID x 14mm GRV ø x 20mm OD x 8mm Thk

2шт.

13

5155698

GASKET

4шт.

14

14084114

FLANGE NUT,M5 x .8, Flg

4шт.

15

5141635

CEILING LAMP

1шт.

16

14144190

BULB,W5W, 12V, 5W

12V-5W

1шт.

17

10863090

BULB,C5W, 12V, 5W

1шт.

18

15902604

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 9.50mm

2шт.

19

44911604

BRACKET

1шт.

20

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

2шт.

21

5154844

BRACKET

8шт.

22

82014733

GRILLE

, Serial Range: -HJH051740

2шт.

22

87319889

GRILLE

, Serial Range: HJH051741-C6886

2шт.

22

82014733

GRILLE

, Start Serial: D6886

2шт.

23

15902807

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 22mm

8шт.

24

87283179

BULB,H4, 12V, 60/55W

60/55W

2шт.

24

323093A1

BULB

50W

2шт.

25

80378243

WASHER

8x25

4шт.

26

16104121

NUT,M8 x 1.25, Cl 10

4шт.

27

87304489

BRACKET

2шт.

28

14447021

WASHER,5.5mm ID x 15mm OD x 1mm Thk

8шт.

29

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

8шт.

30

47135267

ELEC CONNECTOR,Female, 4 Cavities

, Start Serial: HJH079423

2шт.
