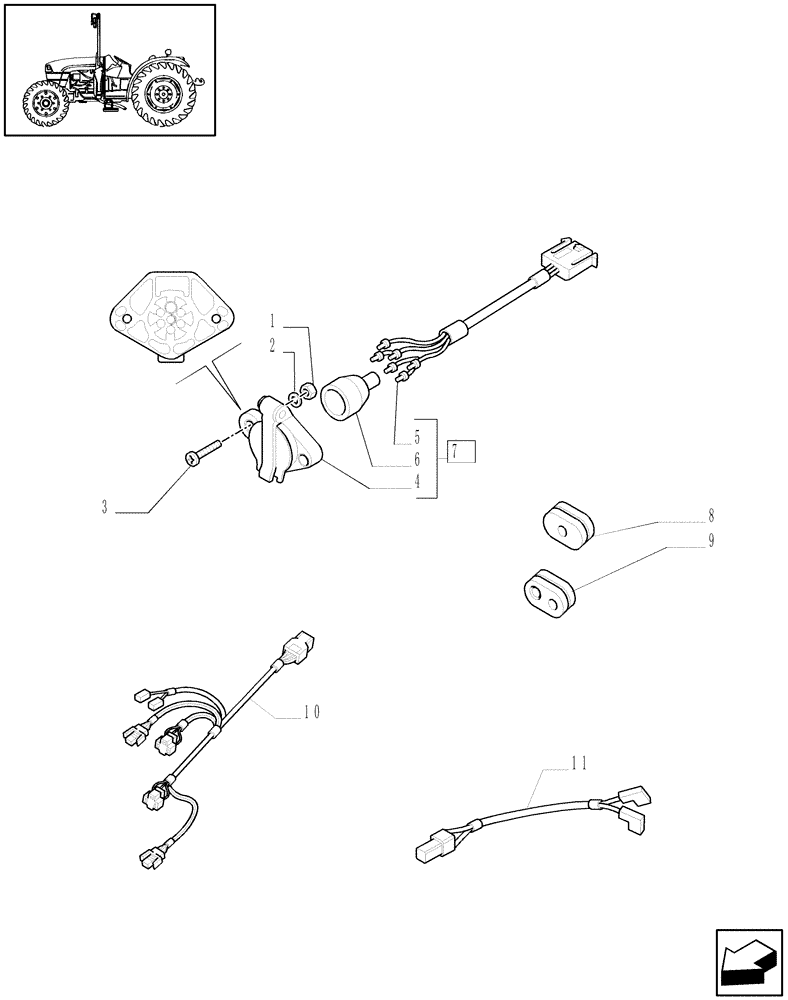

Запчасти Case IH JX1075C (1.92.75/09[01]) - (VAR.007) NA PACKAGE - ADDITIONAL POWER POINTS (10) - OPERATORS PLATFORM/CAB

1

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

3

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

2шт.

4

5186012

SOCKET/RECEPTACLE

7 POLE

1шт.

5

5199466

WIRE HARNESS

1шт.

6

5186014

CAP

1шт.

7

5199465

WIRE HARNESS

Assy

1шт.

8

87565310

GROMMET,8mm ID x 28mm x 38mm x 10mm

4шт.

9

87565315

GROMMET

1шт.

10

47056665

CHECK CONTROL

CORNER LIGHTS

1шт.

11

47126628

ELECTRIC CABLE

REAR (W/CAB ONLY)

2шт.

Rear Lamps Extension

1шт.
