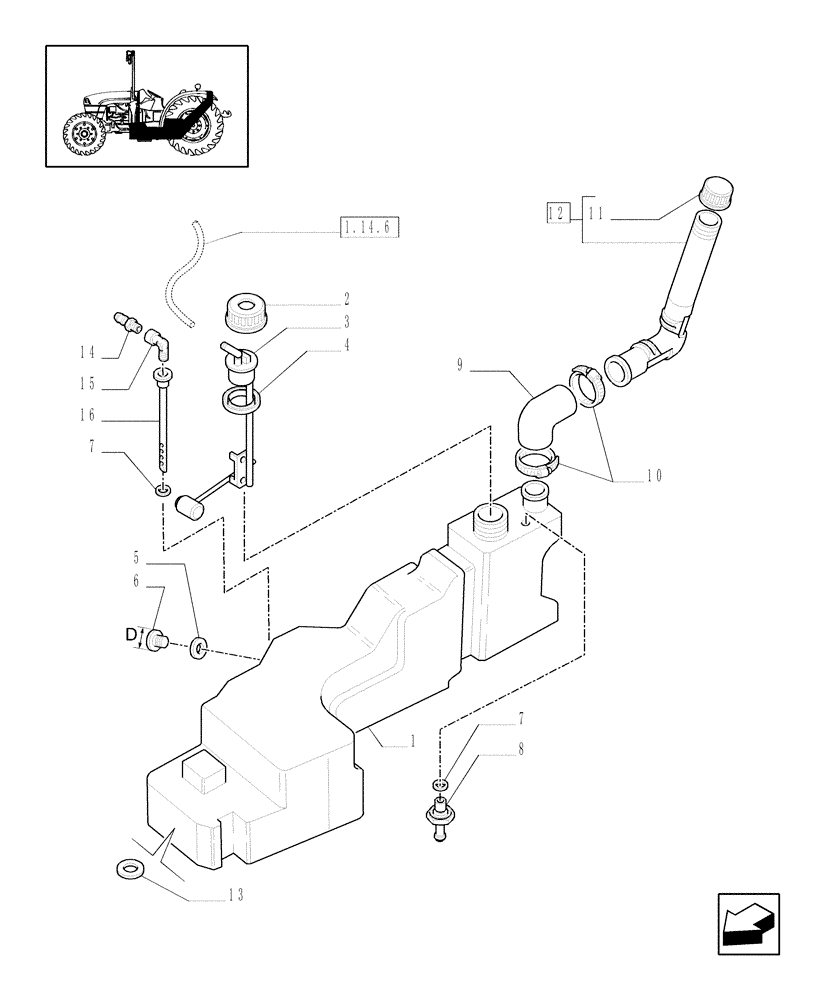

Запчасти Case IH JX1075C (1.14.0[01]) - FUEL TANK - C5540 (02) - ENGINE EQUIPMENT

1

5192322

TANK

Fuel, Incl. Ref. 2 - 8 & 13 - 16

1шт.

2

82002171

RING NUT

1шт.

3

5194712

LEVEL GAUGE CONTROL

1шт.

4

83998804

GASKET,4mm Thk

1шт.

5

14463889

O-RING,34.52mm ID x 3.53" Width

1шт.

6

82019464

PLUG,3/4" GAS x 13.5mm L

D = 46

1шт.

7

14463181

O-RING,921" ID x 0.139" Width

2шт.

8

5191130

HYD CONNECTOR

1шт.

9

5185885

HOSE,66.00 mm ID

1шт.

10

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

M50-70

2шт.

11

82009352

FILLER CAP

1шт.

11

85702172

CAP

Locking

1шт.

12

5192320

NECK FILLER

1шт.

13

5190715

SPACER

7шт.

14

5186203

HYD CONNECTOR,M1/4-9

1шт.

15

5184539

HYD CONNECTOR,1/4" GAS - 1/4" GAS - 90°

1шт.

16

5187042

RIGID TUBE

1шт.
