(1.92.75/06) - (VAR.270) HI-LO 32X16 (30 KM/H) W/OIL COOLER AND ADJ. STEERING COLUMN - ELECTRIC CABLES

Запчасти Case IH JX1075C (1.92.75/06) - (VAR.270) HI-LO 32X16 (30 KM/H) W/OIL COOLER AND ADJ. STEERING COLUMN - ELECTRIC CABLES (10) - OPERATORS PLATFORM/CAB

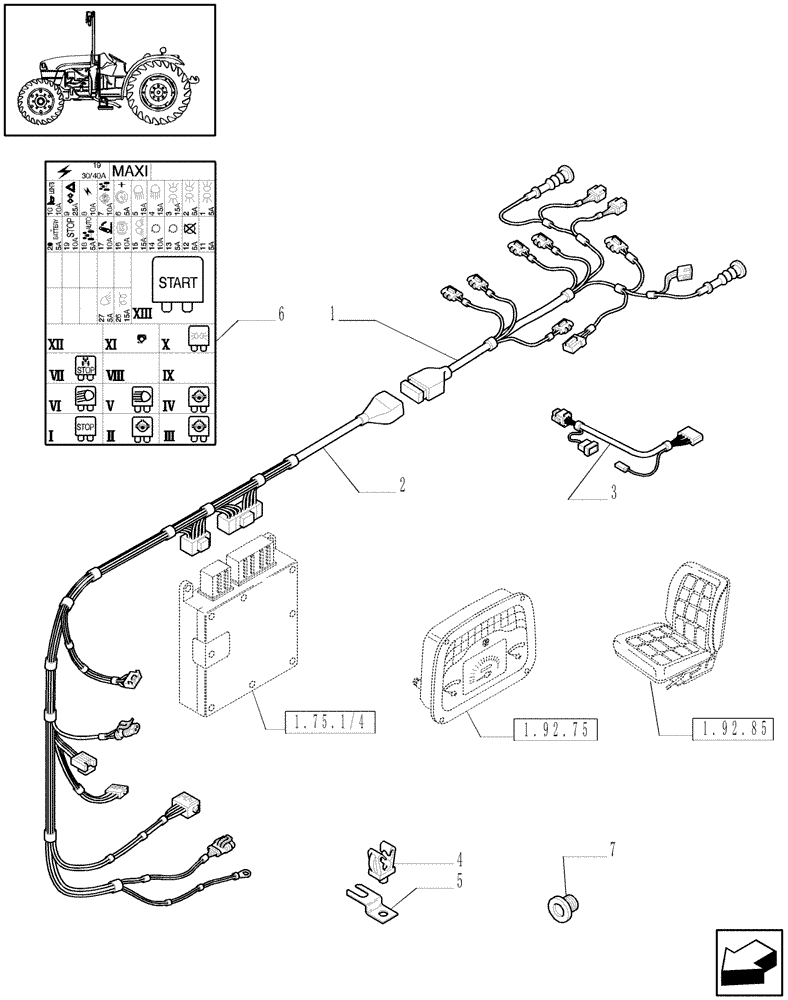

Схема запчастей Case IH JX1075C - (1.92.75/06) - (VAR.270) HI-LO 32X16 (30 KM/H) W/OIL COOLER AND ADJ. STEERING COLUMN - ELECTRIC CABLES (10) - OPERATORS PLATFORM/CAB
2
1.92.85
7
3
6
4
1
1.75.1/4
1.92.75
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5189736

ELECTRIC CABLE

Transmission

1шт.

2

47133587

ELECTRIC CABLE

, Serial Range: -C5294

1шт.

2

87370174

ELECTRIC CABLE

, Start Serial: D5294

1шт.

3

5188081

WIRE HARNESS

Seat Safety Circuit

1шт.

4

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

3шт.

5

5120229

PLATE

2шт.

6

47129973

DECAL

1шт.

7

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.
