Запчасти Case IH JX1075C (1.92.75/02[01]) - (VAR.307) 4WD ELECTRO-HYDRAULIC COUPLING - AUXILIARY CABLES - L/CAB (10) - OPERATORS PLATFORM/CAB

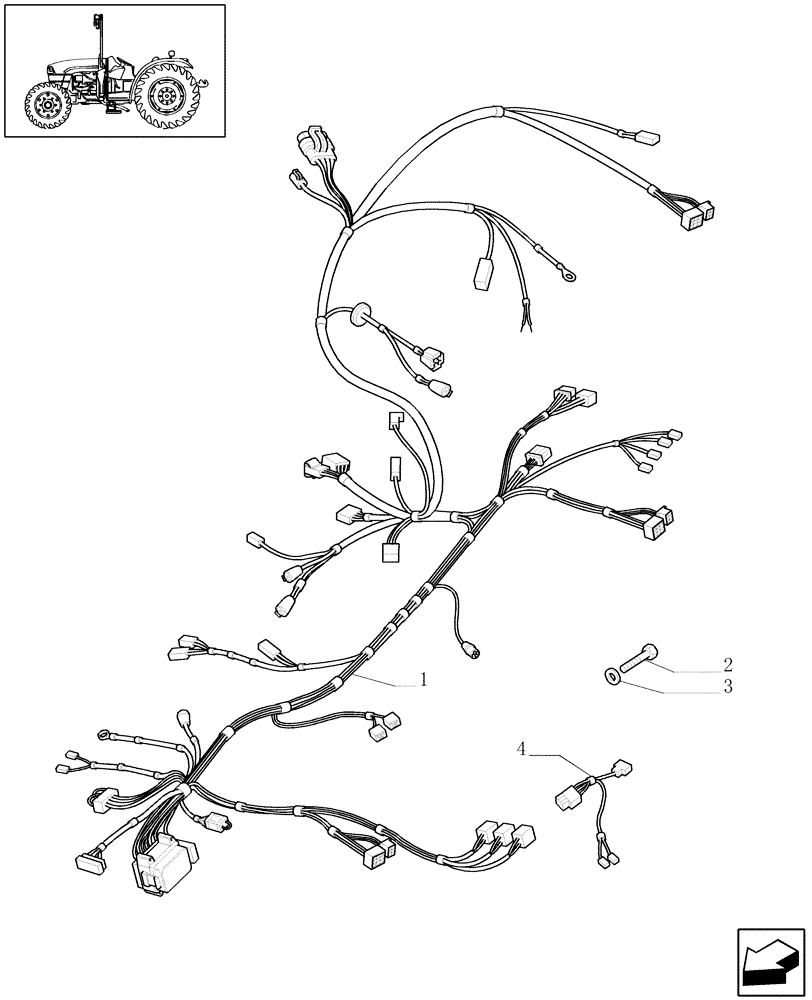

Схема запчастей Case IH JX1075C - (1.92.75/02[01]) - (VAR.307) 4WD ELECTRO-HYDRAULIC COUPLING - AUXILIARY CABLES - L/CAB (10) - OPERATORS PLATFORM/CAB
1
4
3
2

Артикул

Название

Примечание

Количество

1

47132810

ELECTRIC CABLE

, Serial Range: -C5294

1шт.

1

87369830

ELECTRIC CABLE

, Start Serial: D5294

1шт.

2

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

4шт.

3

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

4

5191652

ELECTRIC CABLE

1шт.

Выбрано товаров: 5
