(1.92.75/01) - (VAR.126-127) ELECTRONIC LIFT - AUXILIARY CABLES

Запчасти Case IH JX1075C (1.92.75/01) - (VAR.126-127) ELECTRONIC LIFT - AUXILIARY CABLES (10) - OPERATORS PLATFORM/CAB

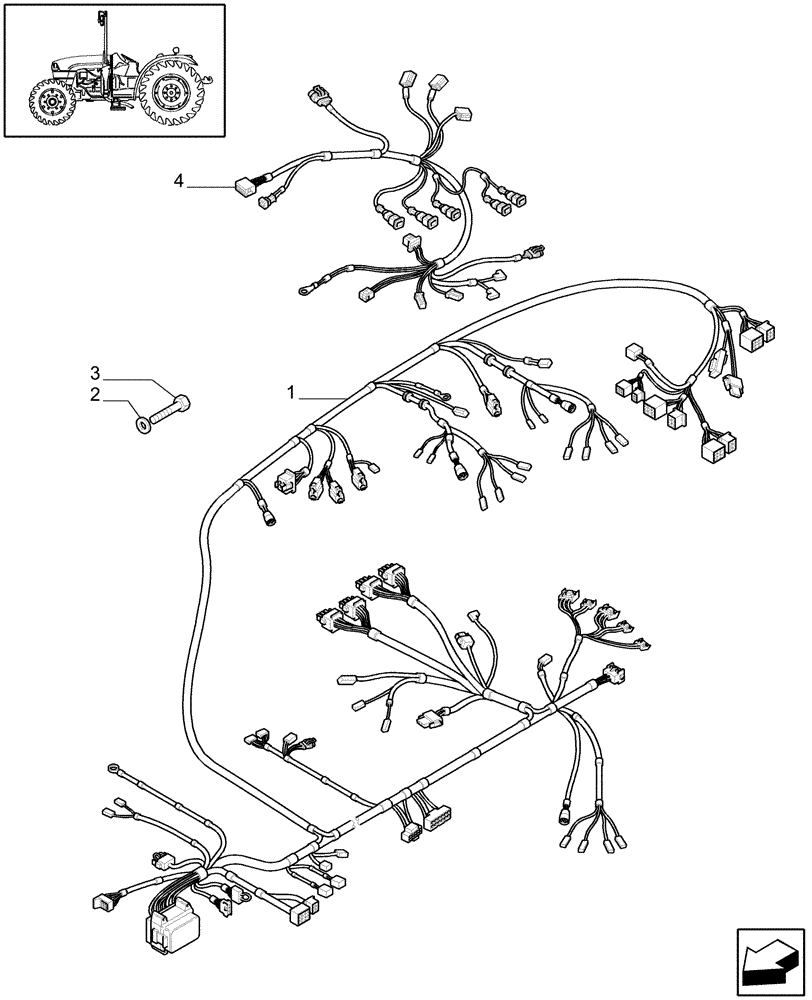

Схема запчастей Case IH JX1075C - (1.92.75/01) - (VAR.126-127) ELECTRONIC LIFT - AUXILIARY CABLES (10) - OPERATORS PLATFORM/CAB
1
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47132805

ELECTRIC CABLE

Main, Serial Range: -HJE014285

1шт.

1

47136777

ELECTRIC CABLE

, Serial Range: HJE014286-C5294

1шт.

1

87378583

ELECTRIC CABLE

, Start Serial: D5294

1шт.

2

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

3

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

4шт.

4

47133585

ELECTRIC CABLE

Transmission DT Permanent

1шт.
