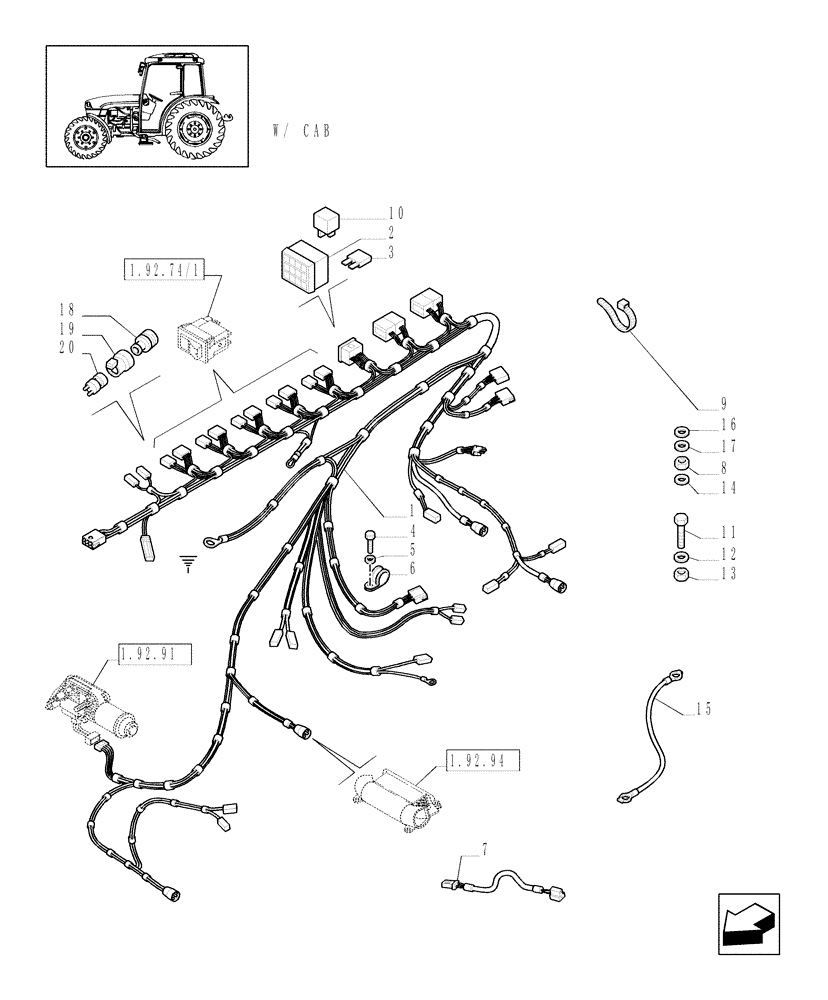

Запчасти Case IH JX1075C (1.92.75[05]) - ELECTRIC CONTROLS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

47126136

ELECTRIC CABLE

, Serial Range: -C5294

1шт.

1

87391526

ELECTRIC CABLE

, Start Serial: D5294

1шт.

2

5173313

FUSE BOX

INCL. REF. 3

1шт.

3

87693742

FUSE,5A

1шт.

3

84090658

FUSE,Lt Blue, 15 Amp

3шт.

3

9504310

FUSE

1шт.

4

13279211

SCREW,Pozidriv Pan Hd, M8 x 16mm, Cl 5.8, Full Thd

4шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

6

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

2шт.

7

47127946

ELECTRIC CABLE

1шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

9

85805383

CABLE TIE

CABLE STRAP

24шт.

10

5155317

RELAY,12V, 30A

1шт.

10

87604032

RELAY,12V, 30A, Micro

12V, 30 Amp

1шт.

10

47127781

RELAY,12V, 20A, Micro, N.O.

12V, 20 Amp

1шт.

11

13273921

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

3шт.

12

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

3шт.

13

15896414

NUT,M5, Cl 8

2шт.

14

12605671

LOCK WASHER,Int Tooth, M10

2шт.

15

5191227

ELECTRIC CABLE

Ground, Serial Range: -HJH075175

1шт.

15

87570576

ELECTRIC CABLE

, Start Serial: HJH075176

1шт.

16

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

17

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

D=6

1шт.

18

5148133

CIGARETTE LIGHTER

1шт.

19

5148132

LAMP SOCKET

1шт.

20

5148131

HOUSING

1шт.
