Запчасти Case IH JX1075C (1.92.75[04]) - ELECTRIC CONTROLS - L/CAB (10) - OPERATORS PLATFORM/CAB

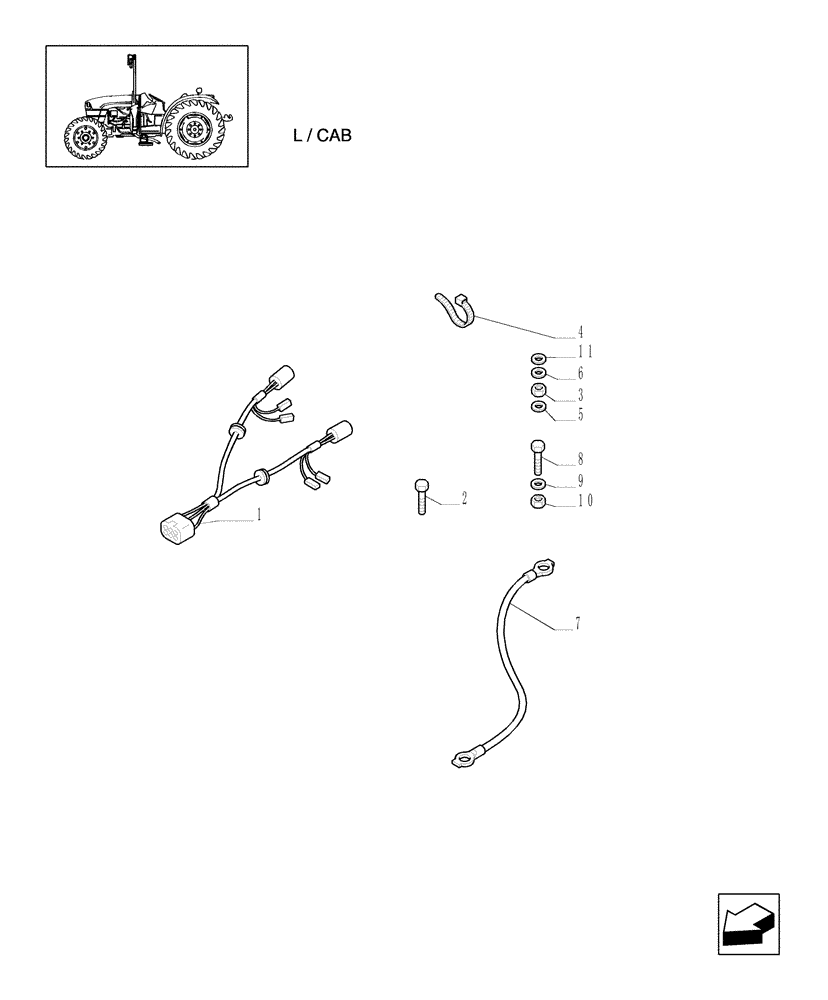

Схема запчастей Case IH JX1075C - (1.92.75[04]) - ELECTRIC CONTROLS - L/CAB (10) - OPERATORS PLATFORM/CAB
6
10
9
3
8
7
5
11
1
4
2

Артикул

Название

Примечание

Количество

1

5191654

ELECTRIC CABLE

1шт.

2

13279277

SCREW,Pozidriv Pan Hd, M8 x 16mm, Full Thd

4шт.

3

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

4

85805383

CABLE TIE

CABLE STRAP

24шт.

5

12605671

LOCK WASHER,Int Tooth, M10

2шт.

6

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

D=6

1шт.

7

5191227

ELECTRIC CABLE

Ground, Serial Range: -HJH075175

1шт.

7

87570576

ELECTRIC CABLE

, Start Serial: HJH075176

1шт.

8

13273921

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

3шт.

9

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

3шт.

10

15896414

NUT,M5, Cl 8

2шт.

11

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

Выбрано товаров: 12
