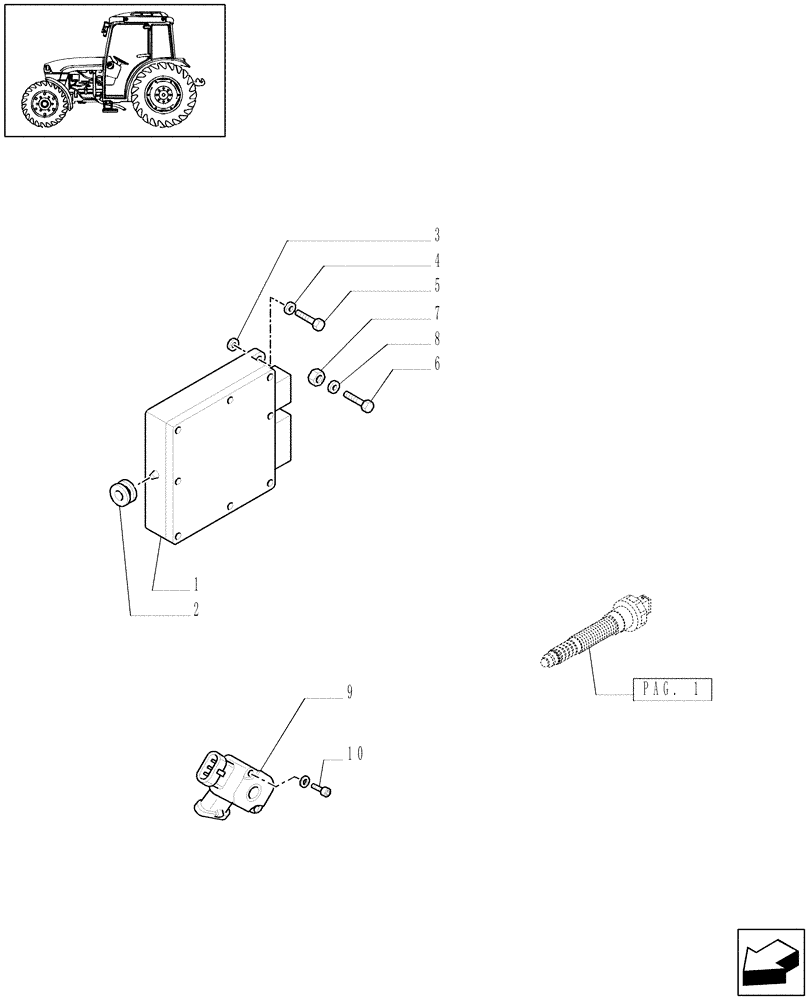

Запчасти Case IH JX1075C (1.92.74/01[02]) - (VAR.126-127) ELECTRONIC LIFT - ELECTRONIC CONTROL UNIT (10) - OPERATORS PLATFORM/CAB

1

47137066

ECU

EDC, Serial Range: -C5651

1шт.

87626676R

REMAN ELECT CONTROL

JX1070C, JX1075C, Both (12/03-), JX1060C (12/03-6/08), All Serial Range: -C5651, Reman for New PN 47137066

1шт.

87626676C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

87626676

ECU

EDC, Start Serial: D5651

1шт.

87626676R

REMAN ELECT CONTROL

JX1070C, JX1075C, Both (12/03-), JX1060C (12/03-6/08), All Start Serial: D5651

1шт.

87626676C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

5175382

RUBBER RING

1шт.

3

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6x16

2шт.

4

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

5

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.

6

13273921

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

2шт.

7

15896414

NUT,M5, Cl 8

2шт.

8

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

9

87543715

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Serial Range: -C5735

1шт.

9

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Start Serial: D5735

1шт.

10

86544168

BOLT,Hex, M5 x 35mm, Cl 8.8

2шт.
