Запчасти Case IH JX1075C (1.92.74/01[01]) - (VAR.126-127) ELECTRONIC LIFT - SWITCHES, SENSOR AND PANEL (10) - OPERATORS PLATFORM/CAB

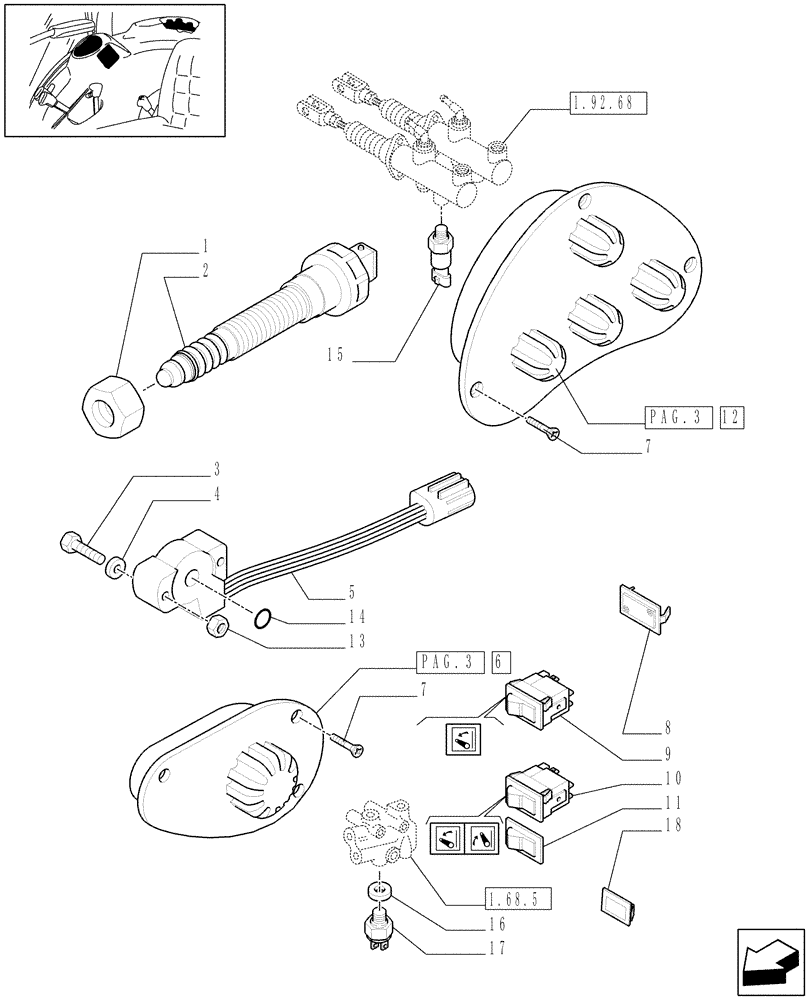

Схема запчастей Case IH JX1075C - (1.92.74/01[01]) - (VAR.126-127) ELECTRONIC LIFT - SWITCHES, SENSOR AND PANEL (10) - OPERATORS PLATFORM/CAB
16
6
3
7
1.92.68
12
17
pag.3
15
2
9
1
8
11
pag.3
1.68.5
18
5
4
7
10
14
13

Артикул

Название

Примечание

Количество

1

10726921

NUT,Thin, M24 x 1.5, Cl 05

1шт.

2

5173566

SENSOR

LVDT

1шт.

3

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

4

10615476

LOCK WASHER,Ext Tooth, M6

2шт.

5

89821734

POTENTIOMETER

1шт.

6

5173565

PANEL

EDC

1шт.

7

15691377

SELF-TAP SCREW,Cross Oval Hd, M4.2 x 13mm

6шт.

7

5182260

SELF-TAP SCREW,M5 x 16mm L

5 x 16

1шт.

8

5166218

PLUG,Switch

4шт.

9

5180495

TOGGLE SWITCH

Up/Down INT.

1шт.

10

5173877

TOGGLE SWITCH

Up/Down EXT.

2шт.

11

5169266

PROTECTION CAP

2шт.

12

47135380

PANEL

EDC

1шт.

13

14048514

NUT,M4 x .7, Cl 8

1шт.

14

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

15

5190018

PRESSURE SWITCH

Brake pump, Hydr. DT

1шт.

16

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18

1шт.

17

82032837

SWITCH ASSY

To Hydr. DT Light

1шт.

18

5151033

PLASTIC PLUG

4.4 x 2.2

1шт.

Выбрано товаров: 19
