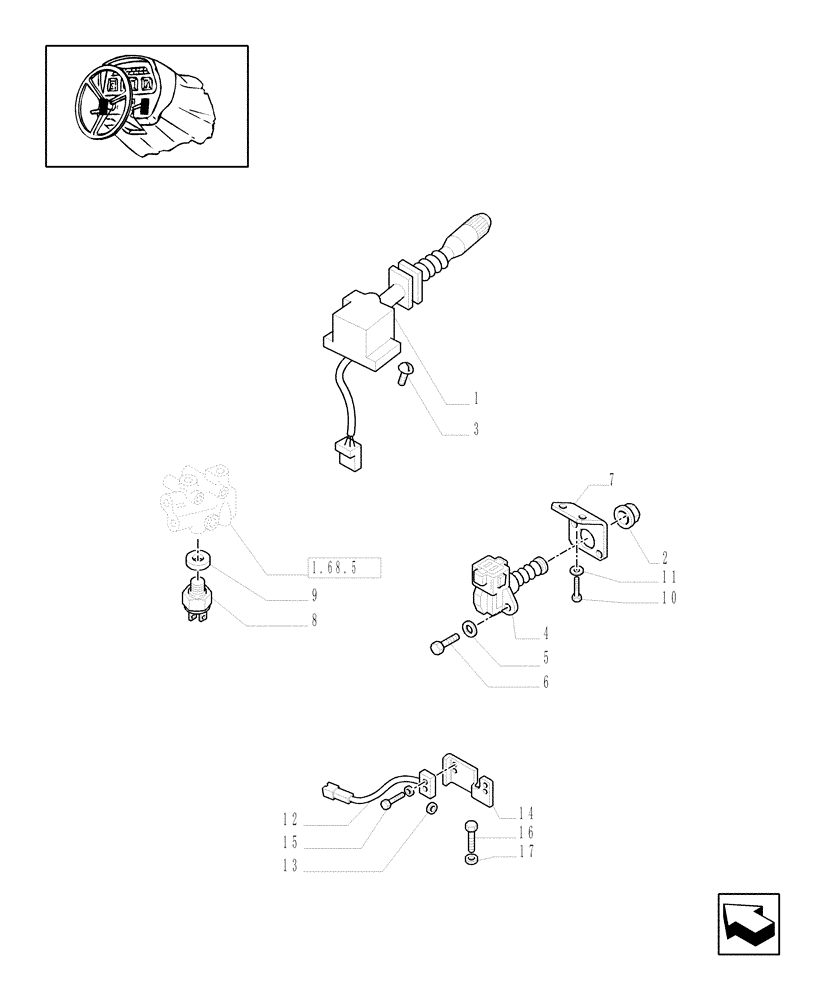

Запчасти Case IH JX1075C (1.92.74[02]) - ELECTRIC CONTROLS (10) - OPERATORS PLATFORM/CAB

1

87577943

LIGHT SWITCH

LIGHTS &TURN, Serial Range: -C5616

1шт.

1

87648947

LIGHT SWITCH

Lights Control, Start Serial: D5616

1шт.

2

5198051

NUT

1шт.

3

15902801

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 22mm

5шт.

4

5195039

SWITCH

Hand Brake, Serial Range: -HJH073666

1шт.

5

80322355

WASHER

2шт.

6

13271924

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 8.8, Full Thd

, Serial Range: -C5437

2шт.

7

5198050

BRACKET

, Serial Range: -C5437

1шт.

8

87395493

PRESSURE SWITCH

Trans. Oil, VAR. 323-323/1

1шт.

Indicates oil missing in DT control pipe

1шт.

9

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

10

13272124

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 8.8, Full Thd

2шт.

11

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

12

87539616

HAND BRAKE

Hand Brake, Start Serial: HJH073667

1шт.

13

87566484

MAGNET

, Start Serial: HJH073667

1шт.

14

87552777

BRACKET

, Start Serial: D5437

1шт.

15

13271814

SCREW,Pozidriv Pan Hd, M4 x 8mm

, Start Serial: D5437

2шт.

15

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

, Start Serial: D5437

2шт.

16

14441027

SCREW,Flat Csk Hd, M5 x 30mm, Cl 8.8, Full Thd

, Start Serial: D5437

1шт.

17

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

, Start Serial: D5437

1шт.
