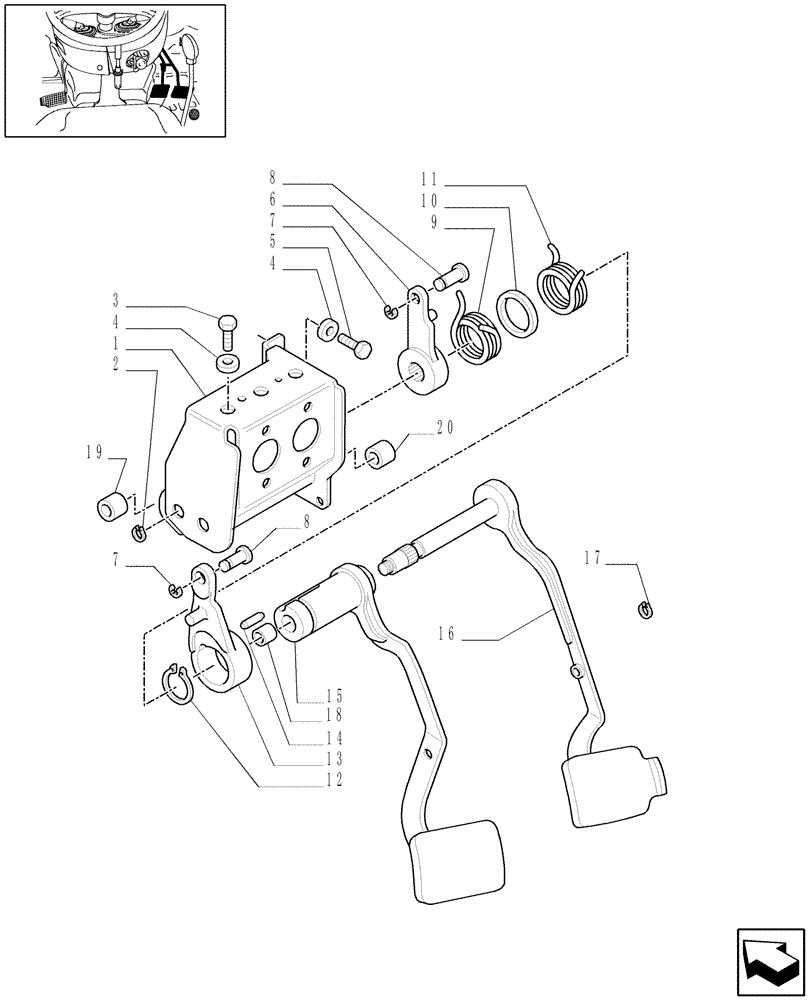

Запчасти Case IH JX1075C (1.92.68[01A]) - BRAKBRAKE PEDALS - D5734 (10) - OPERATORS PLATFORM/CAB

1

87309298

SUPPORT

Incl. 19, 20

1шт.

2

11065874

CIRCLIP,M11

1шт.

3

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

6шт.

5

15970424

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

6

5175528

LEVER

RH

1шт.

7

16160974

CIRCLIP,M9

2шт.

8

5155381

PIN,9.85mm OD x 28mm L

2шт.

9

5168888

SPRING,Extension, 48mm OD x 19mm L

RH

1шт.

10

5177370

SPACER,36mm ID x 49mm OD x 13mm L

1шт.

11

5171174

SPRING,Extension, 48mm OD x 19 mm L

LH

1шт.

12

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

13

5175527

LEVER

LH

1шт.

14

5172858

ROLL PIN,8mm OD x 27mm L

1шт.

15

5180471

PEDAL

Incl.18

1шт.

16

5180474

PEDAL

ASSY

1шт.

17

11088174

CIRCLIP,M10

1шт.

18

5180477

BUSHING,21.1mm ID x 35mm OD x 22mm L

2шт.

19

5170478

TYPE PLATE

1шт.

20

5172873

BUSHING,35.9mm ID x 48mm OD x 27mm L

1шт.
