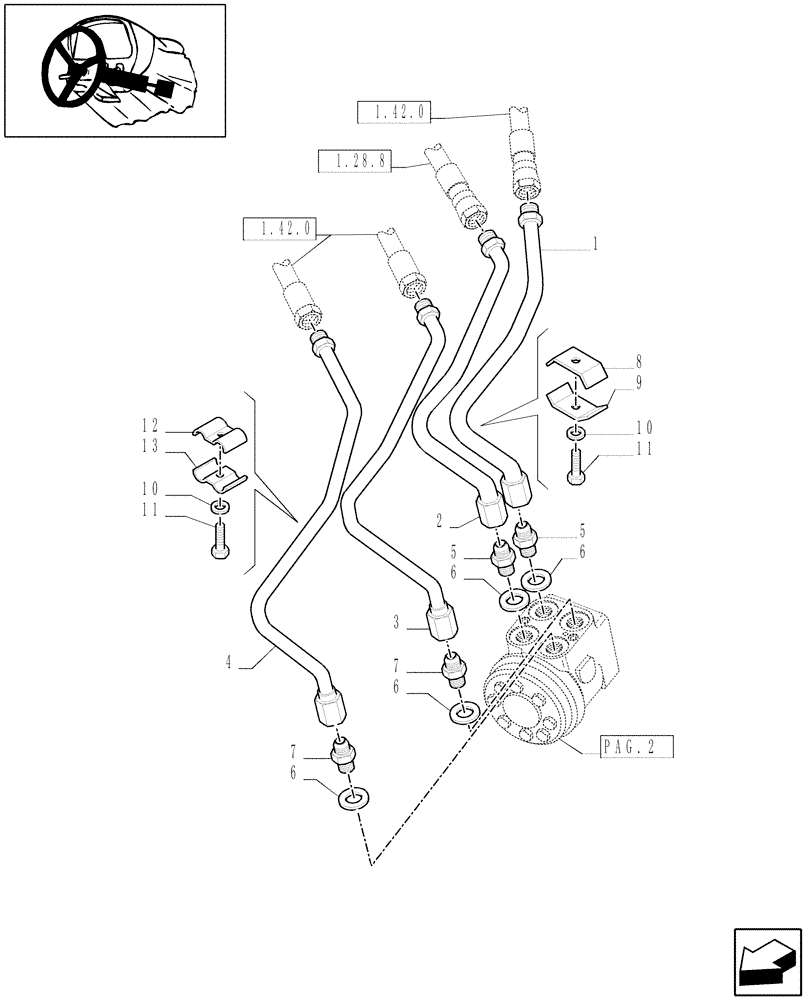

Запчасти Case IH JX1075C (1.92.63[03]) - POWER STEERING PIPES (10) - OPERATORS PLATFORM/CAB

1

5196759

RIGID TUBE

In

1шт.

2

5196761

RIGID TUBE

Out

1шт.

3

5196763

HYD TUBE

LH

1шт.

4

5196765

HYD TUBE

RH

1шт.

5

5158807

HYD CONNECTOR

7/8-14, 1/2 675

2шт.

6

5170555

WASHER

1/2"

4шт.

7

5174421

HYD CONNECTOR

3/4"-16 x 1/2" Gas

2шт.

8

5193549

CLAMP,6mm ID x 25mm Thk x 32mm L

M6

1шт.

9

5193550

CLAMP,6.5mm ID

1шт.

10

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

11

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

2шт.

12

5180016

BRACKET

M6

1шт.

13

5180153

BRACKET

1шт.
