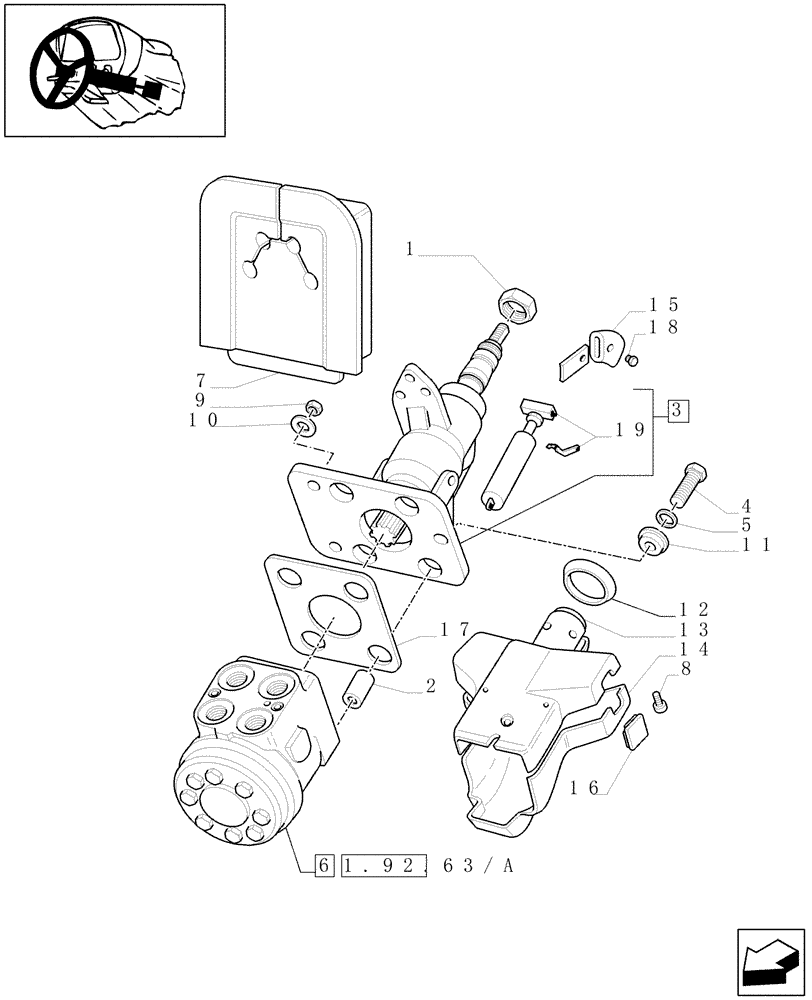

Запчасти Case IH JX1075C (1.92.63[02]) - STEERING COLUMN (10) - OPERATORS PLATFORM/CAB

1

10726621

THIN NUT,Thin, M18 x 1.5, Cl 05

1шт.

2

5197925

SPACER,10.1mm ID x 14mm OD x 20mm L

4шт.

3

5176081

STEERING COLUMN,Tilting, Telescoping

1шт.

4

11106624

SCREW,Hex, M10 x 1.5 x 35 mm, Cl 8.8, Full Thd

4шт.

5

12626224

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

6

5173214

HYDRAULIC STEERING

1шт.

6

5196527

HYDRAULIC STEERING

1шт.

7

5174492

PAD

1шт.

8

13273811

SCREW,Pozidriv Pan Hd, M5 x 8mm

2шт.

8

12674404

SELF-TAP SCREW,Csk Hd, M5 x 16mm

4шт.

9

43362

NUT,M8 x 1.25, Cl 10

3шт.

10

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

11

5197926

PLASTIC-RUBBER TUBE,14mm ID x 20mm OD x 16mm L

4шт.

12

5175327

SEALING RING

SEALRING

1шт.

13

5191688

HALF-SHELL

UPPER

1шт.

14

5192884

HALF-SHELL

LOWER

1шт.

15

87302009

KNOB

1шт.

16

87559278

PLUG,1.5mm, Black

1шт.

17

5197927

SHIM,45mm ID x 82mm OD x 5mm Thk

1шт.

18

14418924

SCREW,M4 x 8mm, Cl 8.8, Full Thd

M4x8

1шт.

18

13797813

SCREW,M6 x 10mm

M6x10

1шт.

19

9972148

GAS STRUT

JX1060C

1шт.
