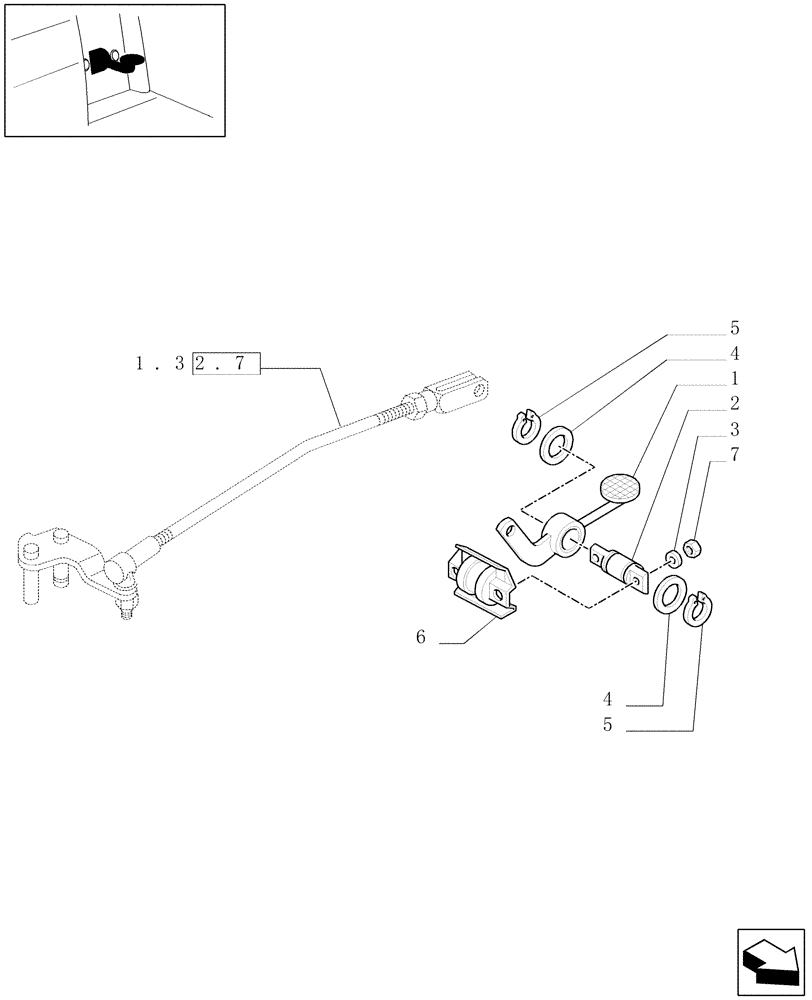

Запчасти Case IH JX1075C (1.92.32) - DIFFERENTIAL LOCK CONTROL PEDAL (10) - OPERATORS PLATFORM/CAB

1

5170640

PEDAL

1шт.

2

5126191

PIN

1шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

4

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

D = 35 x 21 x 2

2шт.

5

11066976

SNAP RING,M21, Ext

2шт.

6

5134730

COVER

1шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.
