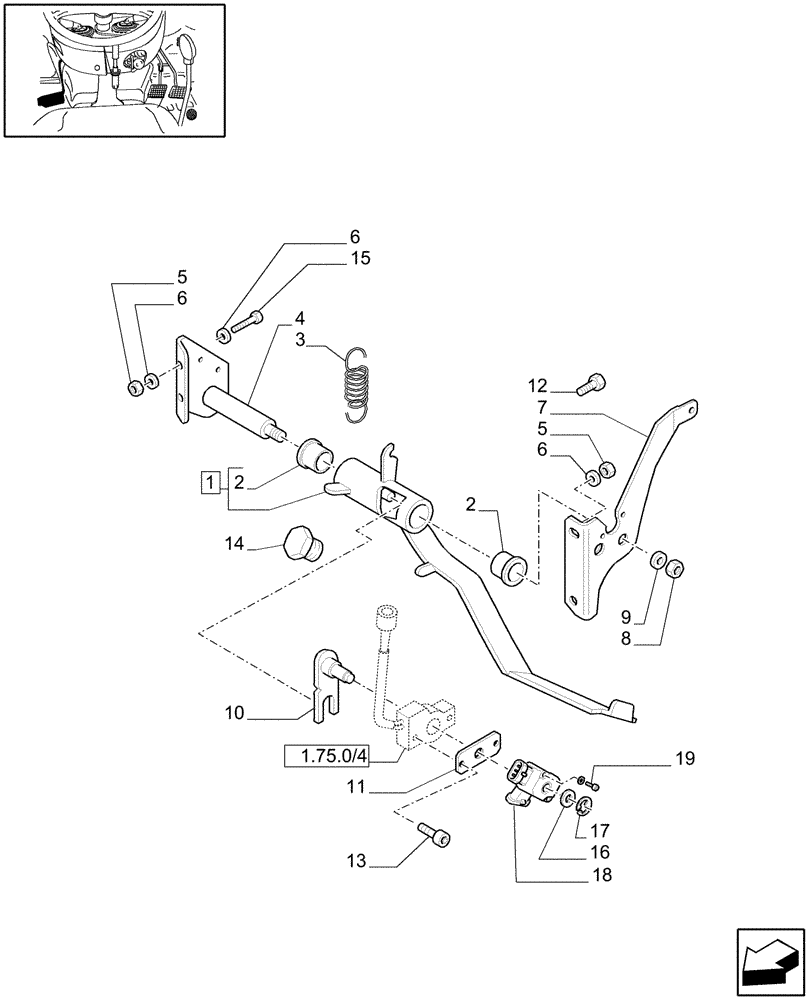

Запчасти Case IH JX1075C (1.92.26/04) - (VAR.270) HI-LO 32X16 (30KM/H) - PEDAL AND BRACKET FOR CLUTCH COUPLING (10) - OPERATORS PLATFORM/CAB

1

5175165

PEDAL

ASSY

1шт.

2

5188075

BUSHING,22mm ID x 26.27mm OD x 26mm L

2шт.

3

5177552

SPRING,51mm OD x 64mm L

1шт.

4

47130713

SUPPORT

RH

1шт.

5

16100824

NUT,M8, Cl 10

4шт.

6

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

4шт.

7

47130711

SUPPORT

LH

1шт.

8

16101524

NUT,M12 x 1.25, Cl 10

1шт.

9

11190874

BELLEVILLE WASHER,M12 Bolt Size x 30mm OD x 3mm Thk

1шт.

10

47132765

SHAFT,39.55mm L

1шт.

11

47133571

PLATE

1шт.

12

13030421

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

M10x22

1шт.

13

13271911

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

2шт.

14

5179011

PLUG,Hex, M32 x 2

1шт.

15

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

17

11087876

CIRCLIP,M7

1шт.

18

82021035

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

1шт.

19

86544168

BOLT,Hex, M5 x 35mm, Cl 8.8

2шт.
