Запчасти Case IH JX1075C (0.88.0[03A]) - (VAR.577-608) AIR CONDITIONING - FILTER AND BRACKET - D5034 (01) - ENGINE

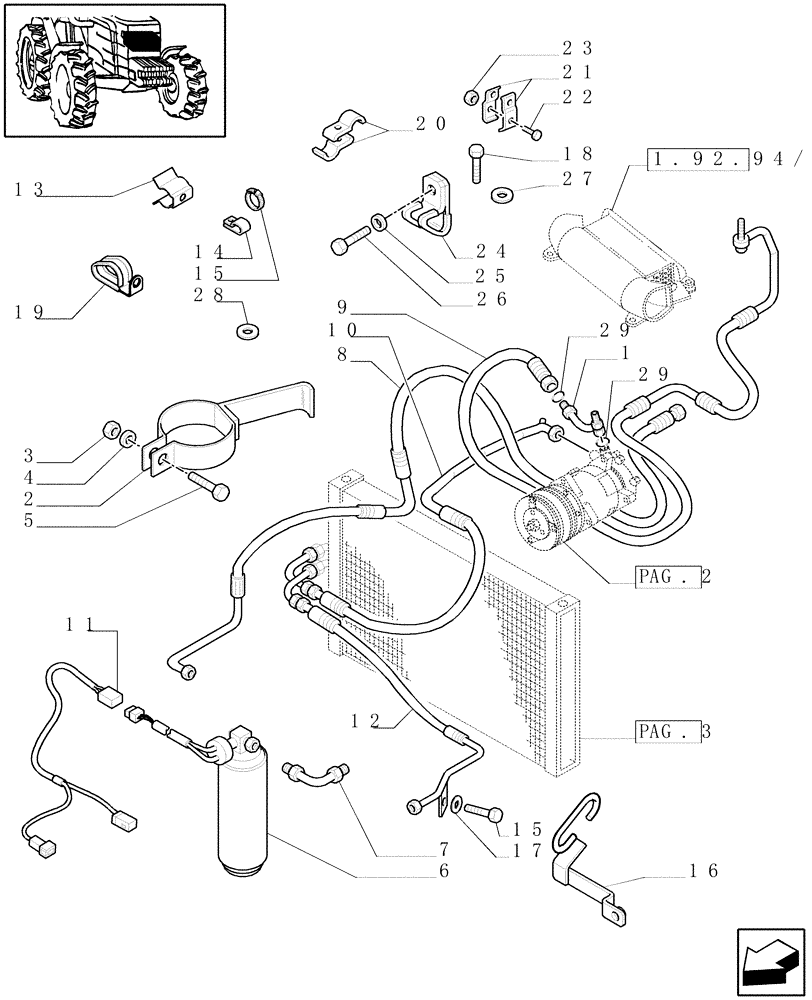

Схема запчастей Case IH JX1075C - (0.88.0[03A]) - (VAR.577-608) AIR CONDITIONING - FILTER AND BRACKET - D5034 (01) - ENGINE
24
g.2
9
28
14
a
g.3
6
p
11
2
27
1
29
p
3
25
21
29
15
16
17
4
1.92.94/03
5
13
10
19
15
22
12
18
20
7
26
a
23
8

Артикул

Название

Примечание

Количество

1

47133378

HYD CONNECTOR

1шт.

2

47131823

BRACKET

1шт.

3

15896214

NUT,M6, Cl 8

1шт.

4

10516474

LOCK WASHER

D=6

1шт.

5

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

6

5165615

RECEIVER-DRYER

1шт.

7

5187830

ELBOW

1шт.

8

87315618

FLEXIBLE HOSE

From Conditioner to Dehydrator Filter

1шт.

9

87315617

FLEXIBLE HOSE

From, Serial Range: Conditioner-Compressor

1шт.

10

87315622

FLEXIBLE HOSE

From, Serial Range: Compressor-Condenser

1шт.

11

5192248

ELECTRIC CABLE

1шт.

12

87315620

FLEXIBLE HOSE,8.00 mm ID x 1059.00 mm

From Condenser to Dehydrator Filter

1шт.

13

87316444

SPRING

D=12-16

1шт.

13

87316446

SPRING

D=21-25

1шт.

14

5158379

CLAMP

1шт.

15

86508616

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

1шт.

16

47135589

BRACKET

VAR.007

1шт.

17

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

18

10374611

SCREW

M4x5

1шт.

19

87316215

COLLAR

1шт.

20

5156374

CLAMP

1шт.

21

5156399

CLAMP

1шт.

22

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.

23

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

24

5185406

COLLAR

2шт.

25

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

26

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

27

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

28

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

29

9971761

RING

2шт.

Выбрано товаров: 30
