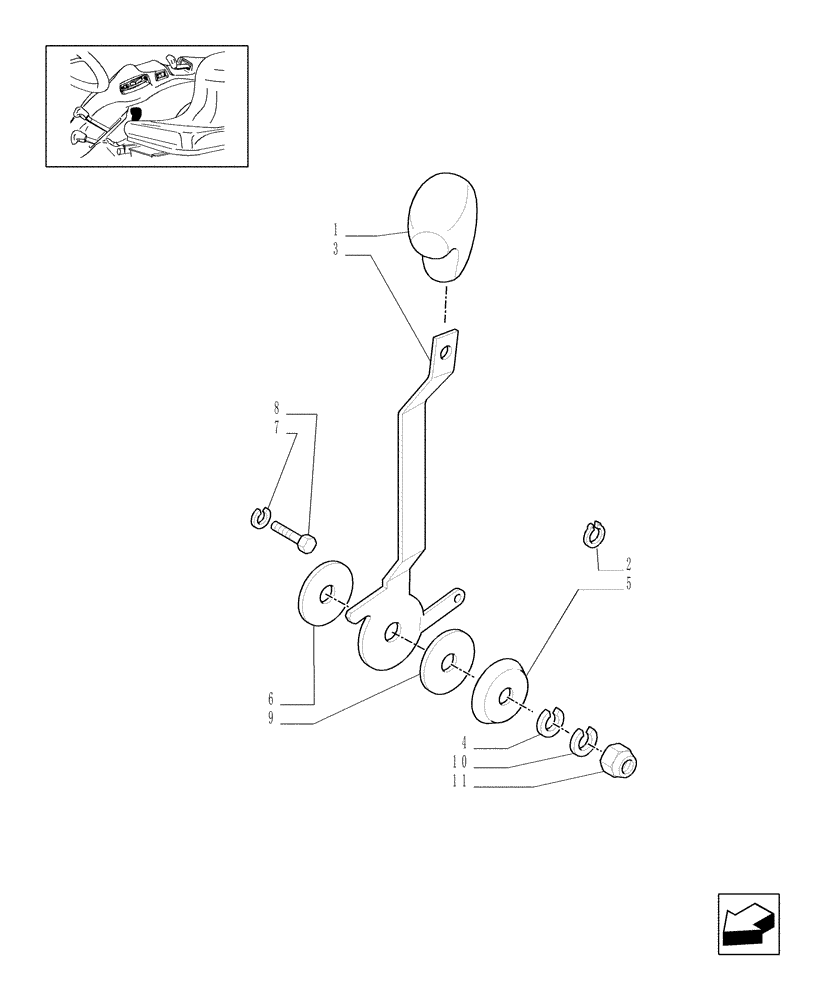

Запчасти Case IH JX1075C (1.92.11/01) - (VAR.722) CONTROL VALVE JOYSTICK (10) - OPERATORS PLATFORM/CAB

1

87587990

KNOB,Orange

Orange

1шт.

2

11087676

CIRCLIP,M5

1шт.

3

5194560

LEVER

FOR VAR.124-125-722-365 ONLY, Serial Range: -HJE065795

1шт.

3

87378730

LEVER

, Start Serial: HJE065796

1шт.

4

10403080

GROMMET

D=12

1шт.

5

87347331

WASHER,12.83mm ID x 52.3mm OD x 0.89mm Thk

1шт.

6

5175509

FRICTION WASHER

12.5x54x2

1шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

9

5175510

SPACER

12.5x54x3

1шт.

10

12646924

WASHER,12.2mm ID x 28mm OD x 3mm Thk

1шт.

11

15506225

LOCK NUT,M12 x 1.25

1шт.
