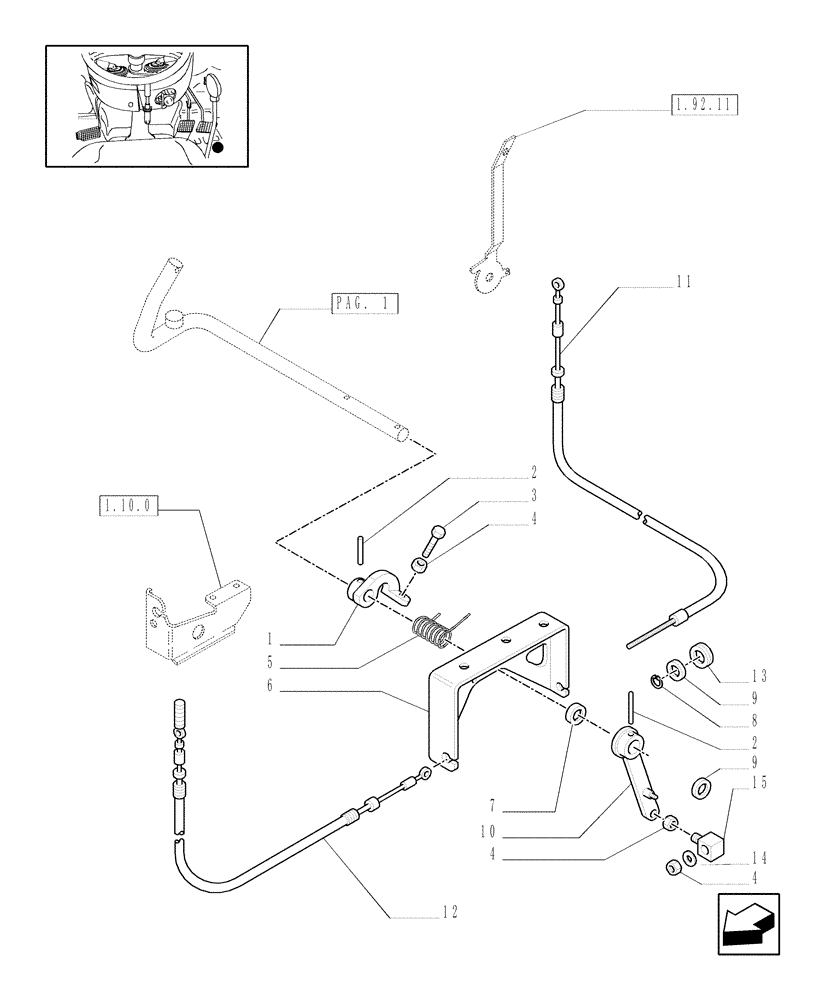

Запчасти Case IH JX1075C (1.92.10[02]) - THROTTLE CONTROL LINKAGE - C5481 (10) - OPERATORS PLATFORM/CAB

1

5176533

LEVER

1шт.

2

13938070

ROLL PIN,M4 x 24mm OAL, Coiled

2шт.

3

15212821

BOLT,Hex, M6 x 45mm, Cl 8.8, Full Thd

M6x45

1шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

5

5172853

SPRING

1шт.

6

5192293

SUPPORT

, Serial Range: -C5481

1шт.

7

5188350

SPACER

1шт.

8

11087871

CIRCLIP,M7

4шт.

9

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

1шт.

10

5192292

LEVER

, Serial Range: -C5481

1шт.

11

5192265

FLEXIBLE CONTROL

1шт.

12

5192266

FLEXIBLE CONTROL,1311.5mm L

1шт.

13

10397680

GROMMET

1шт.

14

12639721

WASHER

6x11

1шт.

15

5171693

CLAMP

1шт.
