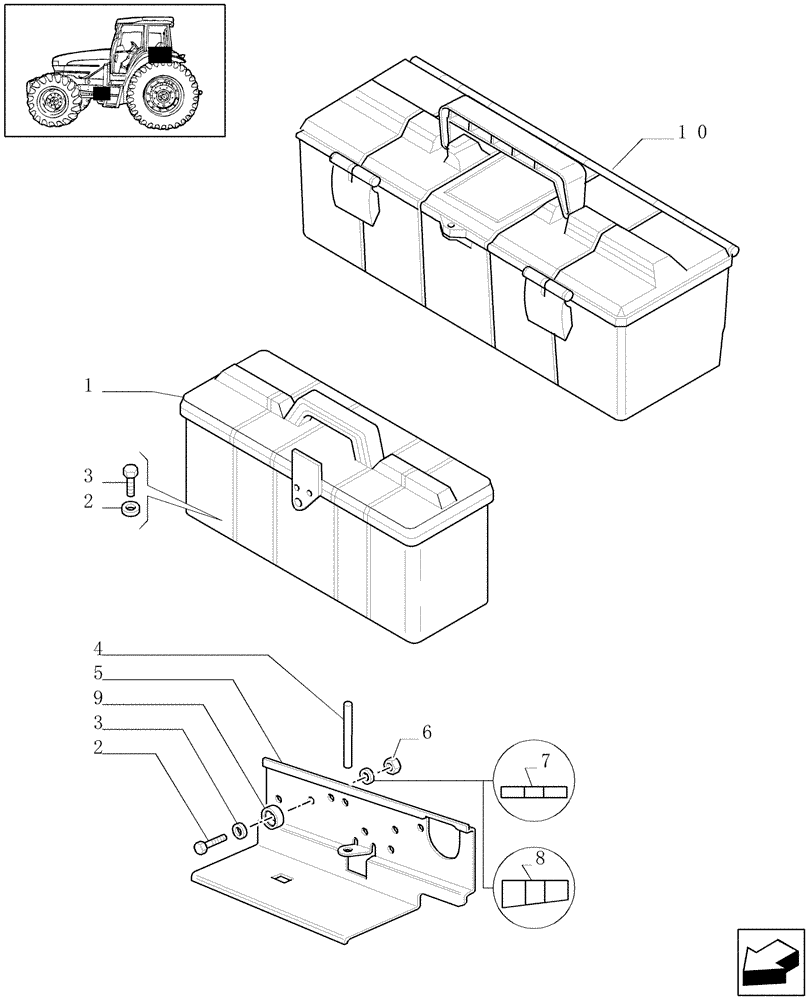

Запчасти Case IH JX1075C (1.90.5[02]) - TOOL BOX - D4945 (10) - OPERATORS PLATFORM/CAB

1

5135060

TOOL BOX

ASSY

1шт.

2

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

3

12648421

WASHER

8x15

2шт.

4

5106675

PIN,6mm OD

W/Cab

1шт.

5

47130869

SUPPORT

W/Cab

1шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

w/Cab

2шт.

7

5185296

SPACER,9mm ID x 30mm OD x 5mm L

W/Cab

1шт.

8

5185297

SPACER

W/Cab

1шт.

9

5185787

PAD

W/Cab

2шт.

10

5095002

TOOL BOX

1шт.
