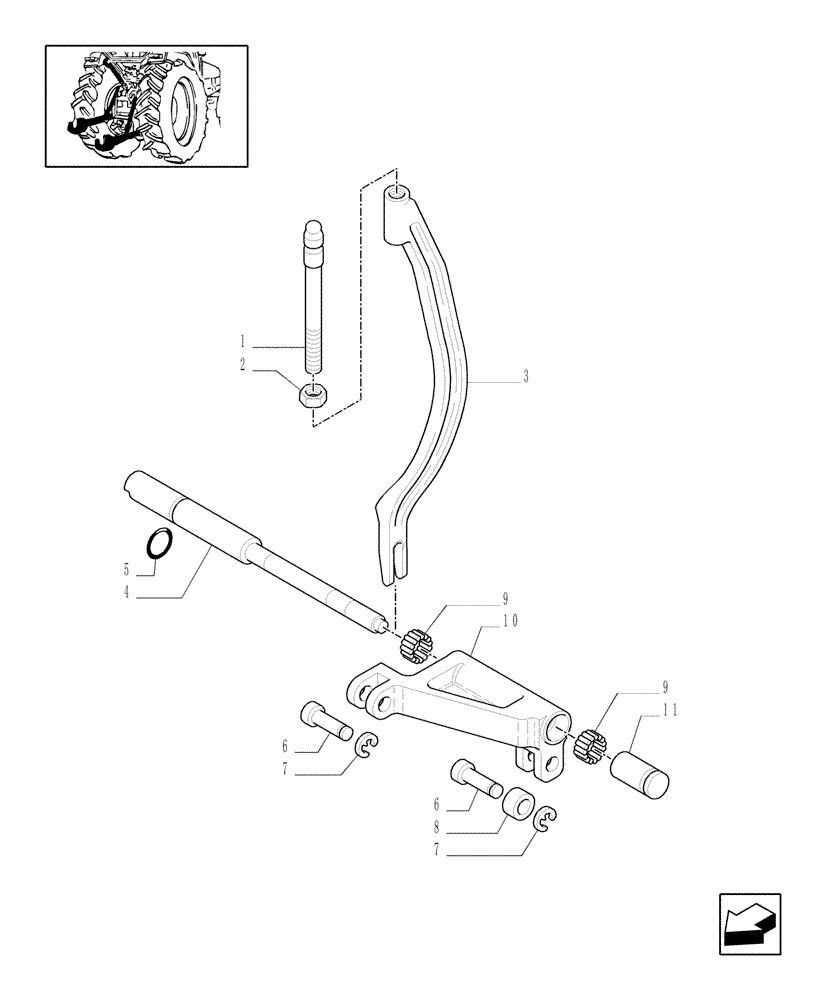

Запчасти Case IH JX1075C (1.89.6[01]) - IMPLEMENT CARRIER (09) - IMPLEMENT LIFT

1

5173381

ROD

1шт.

2

10791011

THIN NUT,Thin, M10 x 1.25, Cl 04

1шт.

3

5176291

ROD,M10 x 1.25 x 266mm L

1шт.

4

5130109

PIN,13.5/20mm OD x 259mm L

W/Cab

1шт.

5

5115996

O-RING,2.62mm Thk x 15.08mm ID, 80 Duro

2.62x15.08, W/Cab

1шт.

6

5109172

PIN,10mm OD x 33mm L

W/Cab

2шт.

7

11065976

CIRCLIP,M10, Ext

W/Cab

2шт.

8

5109156

ROLLER,21mm OD x 12mm L

W/Cab

1шт.

9

5109160

ROLLER BEARING,Needle, 14mm ID x 20mm OD x 12mm W

14 x 20 x 12, W/Cab

2шт.

10

5173391

LEVER

Incl. Ref. 9, W/Cab

1шт.

11

5168405

BUSHING,14mm ID x 20mm OD x 40mm L

W/Cab

1шт.
