(1.89.3/06[01A]) - (VAR.897) SWIVEL HOOK FOR EEC, VERTICAL ADJUST SLIDING (GERMANY) - TON HOOK - D5625

Запчасти Case IH JX1075C (1.89.3/06[01A]) - (VAR.897) SWIVEL HOOK FOR EEC, VERTICAL ADJUST SLIDING (GERMANY) - TON HOOK - D5625 (09) - IMPLEMENT LIFT

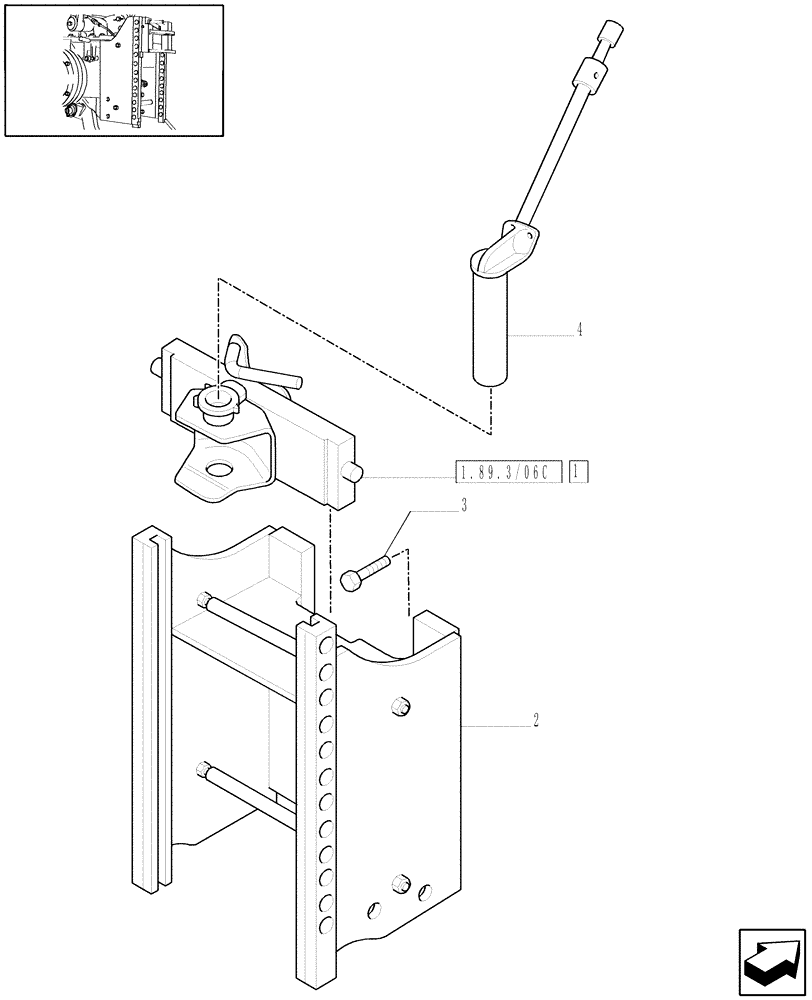

Схема запчастей Case IH JX1075C - (1.89.3/06[01A]) - (VAR.897) SWIVEL HOOK FOR EEC, VERTICAL ADJUST SLIDING (GERMANY) - TON HOOK - D5625 (09) - IMPLEMENT LIFT
1.89.3/06c
2
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87576785

HOOK

ASSY

1шт.

2

47129583

SUPPORT

1шт.

3

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

8шт.

4

87576789

PIN,31mm OD x 155mm L

1шт.

Выбрано товаров: 4
