(1.89.3/06[01]) - (VAR.897) SWIVEL HOOK FOR EEC, VERTICAL ADJUST SLIDING - C5625

Запчасти Case IH JX1075C (1.89.3/06[01]) - (VAR.897) SWIVEL HOOK FOR EEC, VERTICAL ADJUST SLIDING - C5625 (09) - IMPLEMENT LIFT

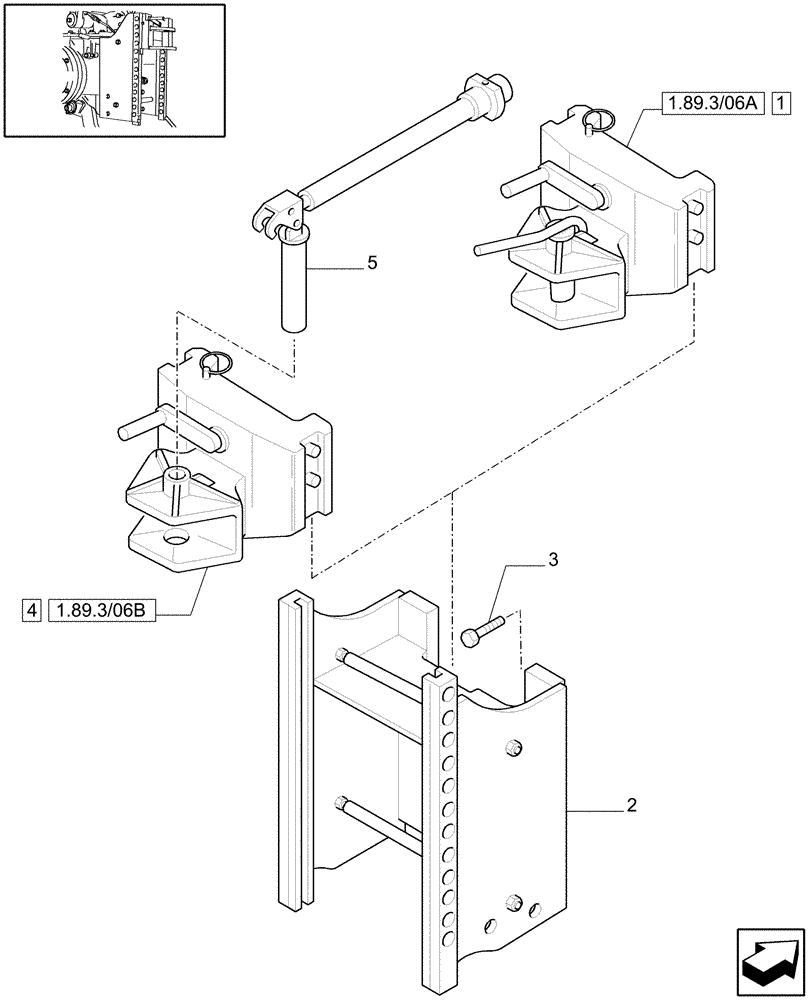

Схема запчастей Case IH JX1075C - (1.89.3/06[01]) - (VAR.897) SWIVEL HOOK FOR EEC, VERTICAL ADJUST SLIDING - C5625 (09) - IMPLEMENT LIFT
5
1.89.3/06b
1
4
3
2
1.89.3/06a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47129614

TOW HOOK

ASSY, Serial Range: -HJH039204

1шт.

2

47129583

SUPPORT

1шт.

3

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

8шт.

4

87334070

HOOK

, Start Serial: HJH039205

1шт.

5

47128463

PIN,31mm OD x mm L

, Start Serial: HJH039205

1шт.

Выбрано товаров: 5
