(1.89.3/01[01]) - (VAR.216) SWIVEL HOOK FOR EEC, VERTICAL ADJUST SLIDING (GERMANY) W/CAB - TOW HOOK

Запчасти Case IH JX1075C (1.89.3/01[01]) - (VAR.216) SWIVEL HOOK FOR EEC, VERTICAL ADJUST SLIDING (GERMANY) W/CAB - TOW HOOK (09) - IMPLEMENT LIFT

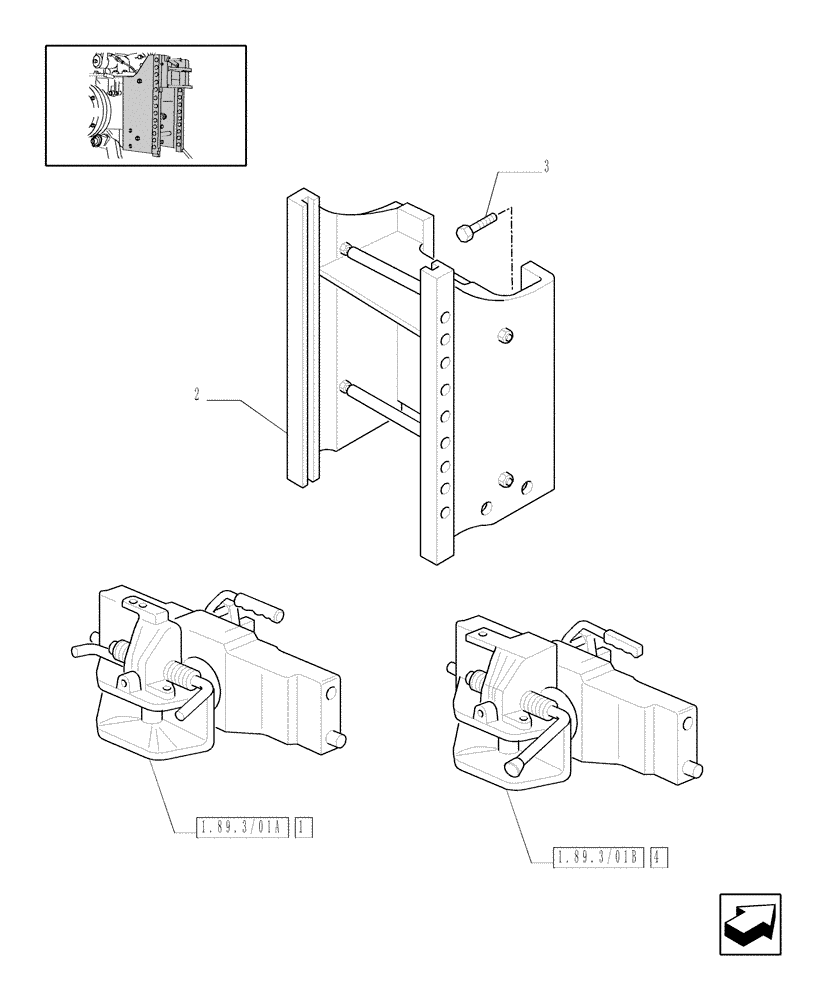

Схема запчастей Case IH JX1075C - (1.89.3/01[01]) - (VAR.216) SWIVEL HOOK FOR EEC, VERTICAL ADJUST SLIDING (GERMANY) W/CAB - TOW HOOK (09) - IMPLEMENT LIFT
2
3
4
1.89.3/01b
1.89.3/01a
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47129854

HOOK

Assy, Serial Range: -C5625

1шт.

2

47129583

SUPPORT

1шт.

3

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

1шт.

4

87576792

HOOK

Assy, Start Serial: D5625

1шт.
