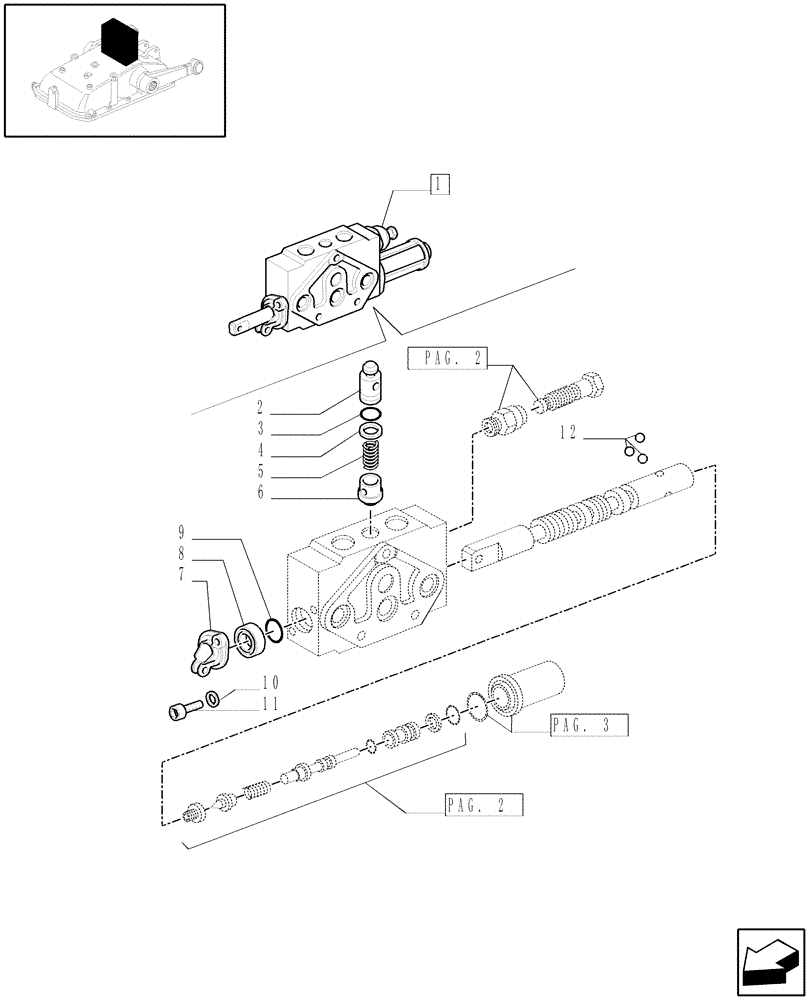

Запчасти Case IH JX1075C (1.82.7/ B[01]) - DOUBLE- ACTING EXTERNAL CONTROL VALVE W/FLOAT AND AUTOMATIC CUTOUT - BREAKDOWN - D5484 (07) - HYDRAULIC SYSTEM

1

87396881

CONTROL VALVE

Assy., S/D W/Autom.Kick-Out

1шт.

2

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

3

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

4

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

1шт.

5

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

6

5116886

PIN,9.4mm OD x 10.5mm L

1шт.

7

5116887

SUPPORT

1шт.

8

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

9

80128359

O-RING

-016, 70 Duro, .614" ID x .070" Thk

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

11

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

2шт.

12

20063420

BALL,3.96mm OD, Gr 100

3шт.
