(1.82.716[01]) - (VAR.373/1) TRAILER BRAKE VALVE (ITALY) FOR FRONT HPL W/ELECTRIC CONTROL - PIPES

Запчасти Case IH JX1075C (1.82.716[01]) - (VAR.373/1) TRAILER BRAKE VALVE (ITALY) FOR FRONT HPL W/ELECTRIC CONTROL - PIPES (07) - HYDRAULIC SYSTEM

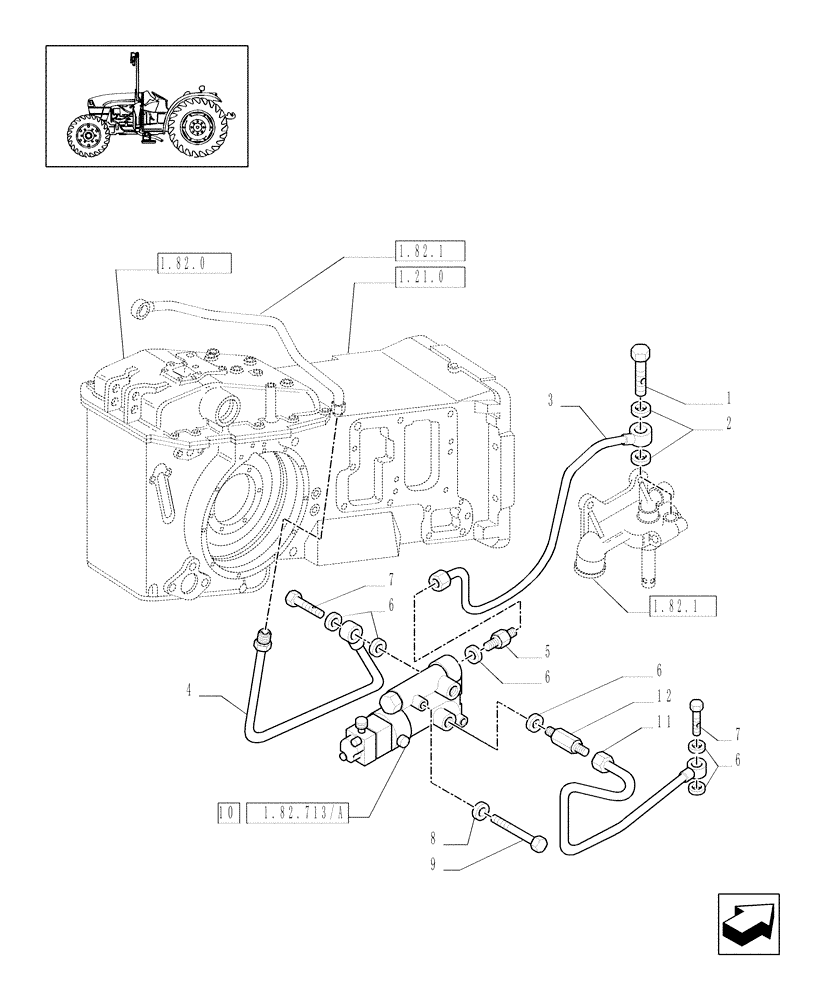

Схема запчастей Case IH JX1075C - (1.82.716[01]) - (VAR.373/1) TRAILER BRAKE VALVE (ITALY) FOR FRONT HPL W/ELECTRIC CONTROL - PIPES (07) - HYDRAULIC SYSTEM
11
6
1
6
1.82.713/a
1.82.1
1.82.1
7
1.21.0
7
2
1.82.0
8
10
5
12
6
9
6
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5184345

BANJO BOLT,M18 x 1.5 x 34mm

M22

1шт.

2

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

3

5180602

RIGID TUBE

1шт.

4

5180483

RIGID TUBE

1шт.

5

5155665

HYD CONNECTOR

1шт.

6

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

6шт.

7

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

8

10571774

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

2шт.

9

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

10

47132616

HYDRAULIC VALVE

1шт.

11

5180615

RIGID TUBE

1шт.

12

5174654

SPACER,M18 x 1.5 NPT x 3/4" - 16

1шт.
