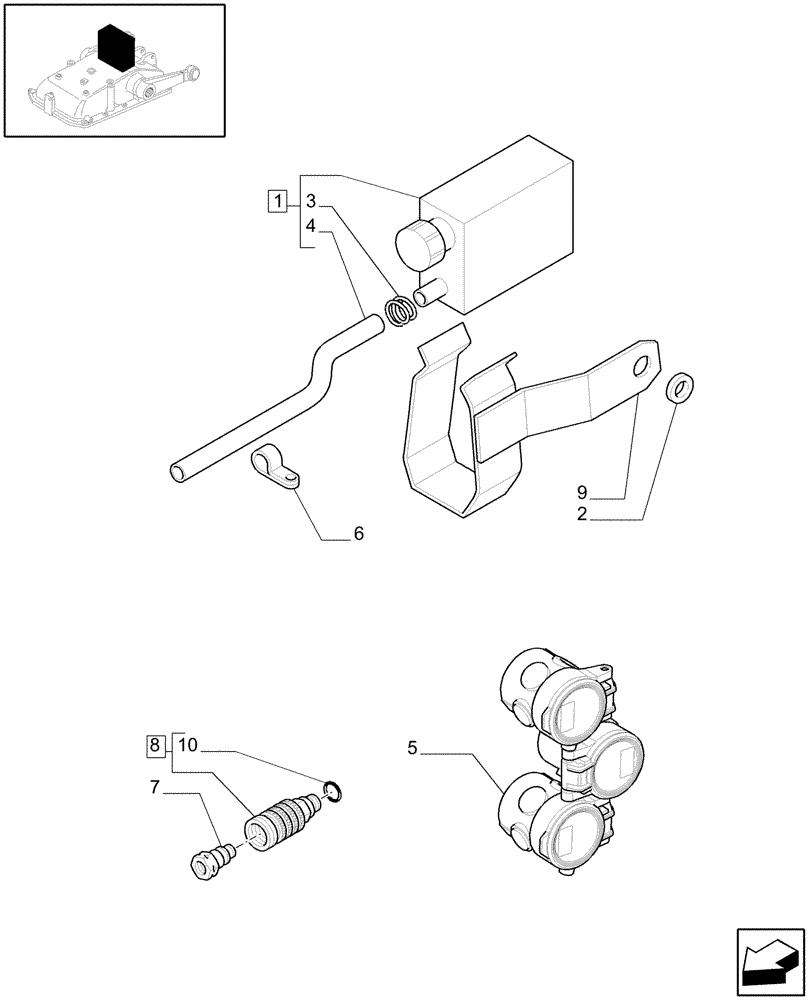

Запчасти Case IH JX1075C (1.82.7/15) - (VAR.545) 6 DELUXE FAST CONNECTORS AND OIL COLLECTION SYSTEM FOR 3 CONTROL VALVES (07) - HYDRAULIC SYSTEM

1

47133028

PAN,0.3L

2шт.

2

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

2шт.

3

13423371

HOSE CLAMP,13.6mm - 15.1mm

15,5-13,6

1шт.

4

19308980

HOSE,7.50 mm ID x 525.00 mm

1шт.

5

47132638

PLUG

2шт.

6

5132413

COLLAR

2шт.

7

5101741

QUICK MALE COUPLING

2шт.

8

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

Incl. 10, include p/n 1534623C1

2шт.

1534623C1

SEAL KIT

1шт.

9

47136266

BRACKET

RH

1шт.

9

47132383

BRACKET

LH

1шт.

10

14438085

O-RING,19.3mm ID x 2.4mm

1шт.
