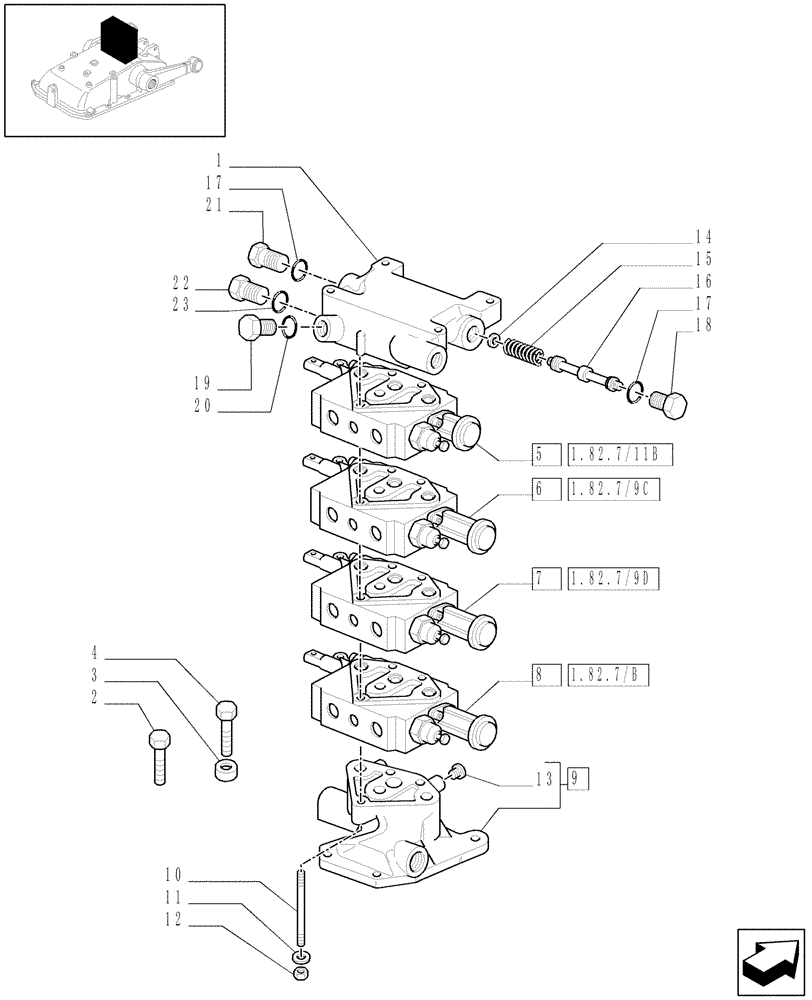

Запчасти Case IH JX1075C (1.82.7/12[05]) - (VAR.166) 4 REMOTE VALVES FOR EDC - CONTROL VALVES - D5484 (07) - HYDRAULIC SYSTEM

1

87374218

FLANGE

INCL. REF. 14-23

1шт.

2

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

3

5188390

SPACER

1шт.

4

16290124

SCREW,M12 x 1.25 x 45mm, Cl 8.8

M12x45

1шт.

5

87396855

CONTROL VALVE

ASSY, S/D

1шт.

6

87396851

CONTROL VALVE

ASSY, S/D W/Float.

1шт.

7

87396877

CONTROL VALVE

Assy., S/D W/Autom.Kick-Out & Float

1шт.

8

87396881

CONTROL VALVE

Assy., S/D W/Autom.Kick-Out

1шт.

9

5176480

FLANGE

1шт.

10

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

3шт.

11

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

12

5116857

NUT,3/8" - 24

3шт.

13

10269550

PLUG

1шт.

14

5167122

VALVE

1шт.

15

83948862

SPRING,12.3mm OD x 76.2mm L

1шт.

16

83999793

HYDRAULIC VALVE

1шт.

17

14438185

O-RING,24mm ID x 3mm

2шт.

18

5167123

PLUG,7/16" - 20

1шт.

19

83957506

PLUG,3/4"

1шт.

20

81826567

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

5173857

PLUG,Hex, M27 x 2

1шт.

22

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

23

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.
