(1.82.7/11[01]) - (VAR.165) 4 REMOTE VALVES FOR MDC - CONTROL VALVES - C5484

Запчасти Case IH JX1075C (1.82.7/11[01]) - (VAR.165) 4 REMOTE VALVES FOR MDC - CONTROL VALVES - C5484 (07) - HYDRAULIC SYSTEM

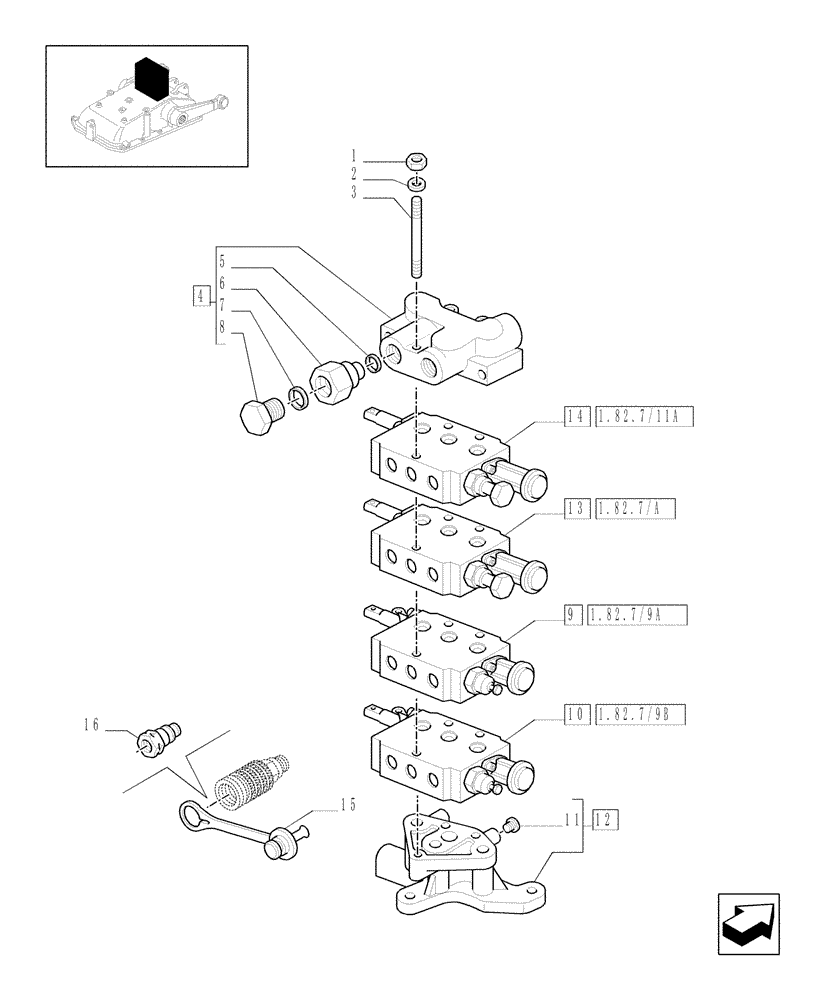

Схема запчастей Case IH JX1075C - (1.82.7/11[01]) - (VAR.165) 4 REMOTE VALVES FOR MDC - CONTROL VALVES - C5484 (07) - HYDRAULIC SYSTEM
2
1.82.7/11a
9
13
6
1.82.7/9b
10
1.82.7/9a
16
14
7
12
15
11
4
5
8
1.82.7/a
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5116857

NUT,3/8" - 24

3шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

3

5149336

THREADED ROD,3/8" - 24 x 10"

3шт.

4

5173758

SUPPORT

ASSY

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

90 Duro, .924" ID x .116" Thk

1шт.

8

83957506

PLUG,3/4"

1шт.

9

5171283

CONTROL VALVE

ASSY

1шт.

10

5186854

CONTROL VALVE

Assy., W/Float & Kick-Out

1шт.

11

10269650

PLUG

M16

1шт.

12

5176800

FLANGE

ASSY

1шт.

13

5186278

CONTROL VALVE

Assy., W/Kick-Out

1шт.

14

5171282

CONTROL VALVE

ASSY

1шт.

15

5186723

DUST CAP,24mm, Black

Black, Std.

2шт.

16

5101741

QUICK MALE COUPLING

8шт.
