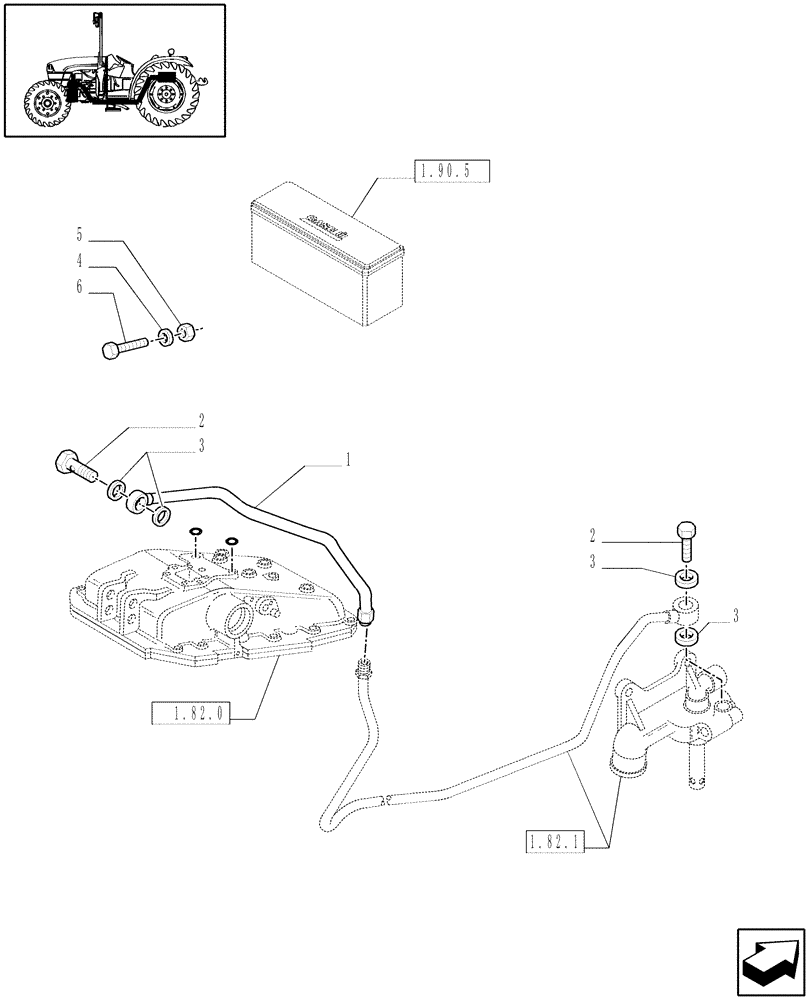

Запчасти Case IH JX1075C (1.82.7/09[04]) - (VAR.195) 3 REMOTE VALVES FOR MDC - BRACKET AND PIPE (07) - HYDRAULIC SYSTEM

1

5181134

RIGID TUBE

1шт.

2

5182095

BANJO BOLT,M22 x 1.5 x 47mm

2шт.

3

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

4шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

5

12164714

NUT,M10 x 1.25, Cl 8

1шт.

6

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

2шт.
